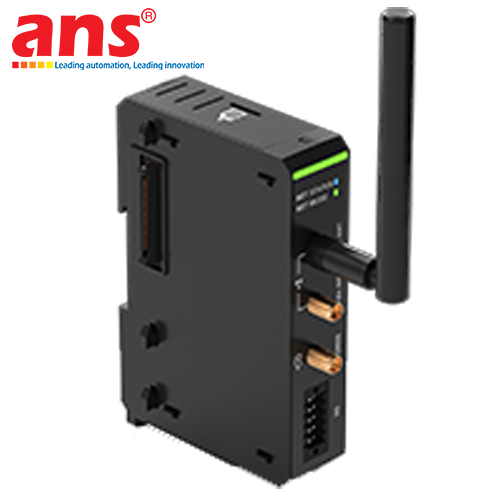

The EXOR MicroEdge Basic Compact Edge Controller & IIoT Gateway represents a state-of-the-art field data acquisition and Industrial Internet of Things (IIoT) processing unit engineered by EXOR International (Italy). Optimized with an ultra-compact DIN-rail form factor, the MicroEdge Basic perfectly fuses the programmable logic capabilities of a modern Micro PLC with the versatile networking agility of a high-end IIoT Edge Gateway. It serves as the ideal choice for OEMs and system integrators aiming to embed data logging, distributed control, and cloud telemetry into small and medium-sized machinery without increasing control cabinet footprints.

Despite its compact profile, the EXOR MicroEdge Basic features an optimized hardware architecture powered by an energy-efficient industrial processor, complete with embedded digital and analog I/O channels directly integrated on-board. This allows immediate interfacing with field sensors, switches, solenoids, and transmitters without requiring costly external expansion modules. The controller runs on a highly stable real-time operating system, fully compliant with CODESYS V3 (IEC 61131-3) PLC programming software and JMobile Runtime data management framework. This combination delivers robust deterministic logic control while supporting seamless protocol translation across more than 200 industrial drivers (Modbus RTU/TCP, Siemens MPI/Profinet, EtherNet/IP, CANopen).

Furthermore, the MicroEdge Basic comes natively equipped with CORVINA Cloud Ready connectivity and operates as an encrypted OPC UA Server/Client. This empowers industrial enterprises to digitize field processes, harvest real-time operating metrics, and deploy remote diagnostics or predictive maintenance workflows in full compliance with IEC 62443 industrial cybersecurity guidelines. Housed in a durable metal casing with broad operating thermal resistance and superior electromagnetic immunity, the EXOR MicroEdge Basic stands as a crucial building block for Industry 4.0 smart factory modernizations.

• Manufacturer: EXOR International / EXOR Oceania
• Country of Origin: Italy
• Model Number: MicroEdge Basic
• Product Line: MicroEdge Series Compact IIoT Edge Controller
• Processor (CPU): High-Performance Industrial ARM Cortex Processor
• System Memory: 512 MB / 1 GB RAM, Embedded Flash Memory
• Operating System: Linux RT
• PLC Programming Environment: CODESYS V3 Supported (IEC 61131-3: LD, ST, FBD, IL, SFC)
• On-board I/O Channels: Integrated Digital Inputs, Digital Outputs, and Analog Inputs/Outputs (Basic Model Configuration)
• Ethernet Interfaces: 1x or 2x 10/100 Mbit Ethernet Ports
• Serial Interfaces: 1x RS-232 / RS-485
• Expansion Slot: MicroSD Card Slot support
• Integrated Software Engine: JMobile Runtime & CODESYS Control Engine
• Supported Protocols: OPC UA Server/Client, Modbus RTU/TCP, PROFINET, EtherNet/IP, CANopen, MQTT
• Cloud Integration: CORVINA Cloud Ready (Secure remote access, monitoring & telemetry)
• Cybersecurity Standard: Compliant with Industrial Cybersecurity Guidelines (IEC 62443)
• Power Supply: 24 VDC (10 to 32 VDC)
• Mounting Style: Standard DIN-rail Mount
• Enclosure Construction: Compact Industrial Alloy Chassis, IP20 Rating
• Operating Temperature: -20°C to +60°C
• Compliance & Certifications: CE, cULus, FCC, RCM, ATEX Zone 2/22 (Model dependent)
