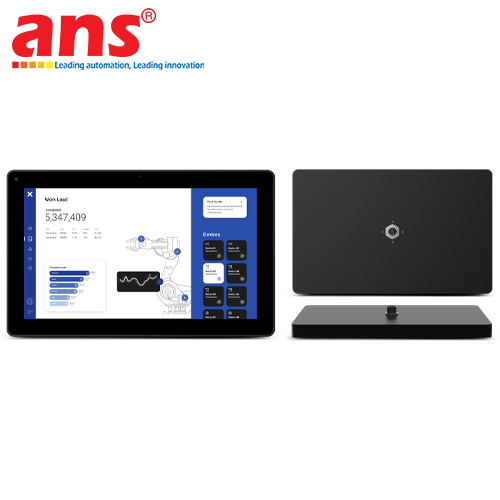

The EXOR JSmart715MH Full IP67 Industrial Field HMI is a high-end, large-format 15.6-inch display panel within the advanced JSmart700 Series family engineered and manufactured by EXOR International (Italy). Purpose-built for large-scale industrial automation applications requiring field-level visual monitoring (Field-ready HMI) without needing extra electrical cabinets or protective enclosures, the JSmart715MH represents a major leap forward in Human-Machine Interface architecture. Featuring a fully sealed IP67 all-around ruggedized casing, it delivers uncompromised resistance against water jets, fine dust ingress, moisture, and aggressive washdown chemicals, meeting the most rigorous hygienic and safety requirements in food & beverage processing, pharmaceutical production, chemical plants, and automated packaging lines.

Featuring a spacious 15.6-inch Full HD display with a resolution of 1920 x 1080 pixels, the JSmart715MH provides wide viewing angles, vibrant color contrast, and superior pixel density. This enables control engineers to design sophisticated SCADA/HMI dashboards integrating complex process diagrams, real-time trend graphs, alarm management matrices, and live camera feeds on a single screen without visual clutter. Protected by heavy-duty scratch-resistant glass with projective capacitive multi-touch technology (PCAP), the touchscreen ensures rapid, fluid, and precise tactile responses, even when operated by technicians wearing heavy industrial gloves or working in high-humidity, wet environments.

A defining architectural feature of the EXOR JSmart715MH is its single-cable installation technology via Power over Ethernet (PoE IEEE 802.3af/802.3at). By combining power and data transmission into a single Ethernet line, wiring costs are reduced by up to 50%, installation time is drastically minimized, and machine aesthetic integration is maximized. Powered by a high-performance ARM Cortex-A9 Quad-Core 800 MHz processor paired with an optimized Linux RT operating system, the panel flawlessly executes the pre-installed JMobile HMI Runtime software. It natively supports a broad range of industrial communication protocols (Modbus, OPC UA Server/Client, PROFINET, EtherNet/IP, CANopen) and IoT cloud integration (CORVINA Cloud Ready), offering a robust foundation for digital factory transformation and Industry 4.0 remote asset management.

• Manufacturer: EXOR International / EXOR Oceania
• Country of Origin: Italy
• Model Number: JSmart715MH
• Product Line: JSmart700 Series Field HMI (High-Performance Large Display)
• Display Size: 15.6 inches TFT Color (16:9 Aspect Ratio)
• Resolution: 1920 x 1080 pixels (Full HD)
• Display Colors: 16.7 Million Colors
• Luminance: 450 cd/m²
• Touchscreen Type: Projective Capacitive Multi-touch (PCAP) with toughened glass
• Processor (CPU): ARM Cortex-A9 Quad-Core 800 MHz
• System Memory (RAM / Flash): 2 GB RAM / 4 GB Flash Memory
• Operating System: Linux RT
• Ingress Protection Rating: Full IP67 All-around enclosure
• Power Supply: Power over Ethernet (PoE IEEE 802.3af/802.3at) or 10-32 VDC
• Ethernet Interface: 1x 10/100 Mbit Ethernet Port (PoE Enabled)
• Wireless Connectivity (Optional): Wi-Fi / Bluetooth
• Integrated Software Suite: JMobile HMI Runtime, OPC UA Server/Client, CORVINA Cloud Ready
• Mounting Options: Support Arm mount, Pipe mount, or direct Machine Flush mount
• Operating Temperature: -20°C to +55°C
• Compliance & Certifications: CE, cULus, FCC, RCM, ATEX Zone 2/22 (Model dependent)
