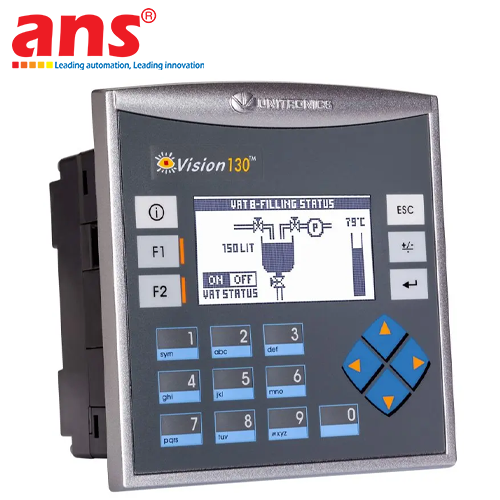

The Vision V130-33-TA24 / V130-J-TA24 is a compact, robust All-in-One industrial automation controller belonging to the Vision130™ series developed by Unitronics (Israel). Combining a high-performance Programmable Logic Controller (PLC), a 2.4-inch graphic LCD screen with an integrated 20-key operational keypad, and a comprehensive onboard Input/Output (I/O) architecture—including high-speed transistor outputs and dedicated analog outputs—the V130 series delivers an all-inclusive automation solution that cuts panel space, eliminates external I/O wiring, and lowers equipment manufacturing costs. The series offers both a standard bezel model (V130-33-TA24) and a sleek flat-bezel model (V130-J-TA24) designed for hygienic washdown environments.

1. Crisp 2.4" Graphic LCD & Industrial Operational Keypad:
The controller features a 2.4-inch STN monochrome LCD display with 128 x 64 pixels resolution and white LED backlighting. The screen accommodates process variable displays, real-time trend graphs, and alarm logs. The front panel incorporates an integrated 20-key operational keypad (including numeric entry, arrow navigation, and customizable function keys), enabling operators to enter setpoints quickly and accurately without removing protective work gloves. The front panel holds an IP65/NEMA4X ingress protection rating, shielding internal electronics against industrial dust and direct water spray.

2. Comprehensive Built-in Onboard I/O Configuration (TA24 Model):
The V130-33-TA24 / V130-J-TA24 is factory-equipped with a rich variety of integrated I/O points:
- Digital Inputs: 12 total 24VDC digital inputs (including 1 High-Speed Counter / Shaft-encoder input operating up to 30 kHz, 32-bit).
- Analog & Temperature Inputs: 2 direct temperature sensor inputs supporting RTD PT100 or Thermocouple types (B, E, J, K, N, R, S, T), plus 2 configurable digital/analog inputs (0-10V, 0/4-20mA) with high 14-bit resolution.
- Transistor Outputs: 10 solid-state pnp transistor outputs (including 5 channels capable of 0.5 kHz PWM/high-speed pulse operation) for contactless, high-frequency switching with zero mechanical wear.
- Analog Outputs: 2 built-in analog outputs (0-10V, 4-20mA, 12-bit resolution) designed for direct regulation of variable frequency drives (VFDs), proportional valves, and analog actuators.
- Scalability: Easily expandable up to 512 local/remote I/O points via Unitronics expansion modules.

3. Fast Execution Engine & Flexible Industrial Connectivity:
- High-speed PLC processing engine executing bit logic operations rapidly (20 µs per 1K of typical application), supporting up to 24 independent Auto-tune PID control loops.
- Memory: 512 KB application logic, 256 KB for HMI images, and 384 KB for custom fonts.
- Built-in Communication: Includes 1 x Isolated RS232/RS485 serial communication port.
- Optional Add-on Communication Modules: Ethernet TCP/IP, CANbus, secondary RS232/RS485, or Profibus Slave modules.
- Protocols Supported: Modbus RTU/TCP, BACnet, SNMP, CANopen, UniCAN, GSM/GPRS SMS notifications, and remote monitoring/control via built-in Web Server and VNC client.

4. Unified Free Single-Environment Software (VisiLogic™):
Both PLC ladder logic development and HMI screen design are programmed within the free VisiLogic™ software suite. Engineers eliminate the need to map cross-device tag databases between separate hardware, resulting in dramatically reduced commissioning time.

• Manufacturer: Unitronics
• Product Series: Vision130™ Series (All-in-One PLC + HMI + Onboard I/O)
• Model Designation: V130-33-TA24 (Standard Bezel) / V130-J-TA24 (Flat Bezel)
• Display Size & Type: 2.4-inch STN Monochrome Graphic LCD (White LED backlight)
• Display Resolution: 128 x 64 pixels
• Keypad: Sealed membrane keypad with 20 keys (numeric, navigation, and function keys)
• Operating Power Supply: 24 VDC (20.4 to 28.8 VDC range)
• Memory Allocation: 512 KB Logic, 256 KB HMI images, 384 KB Fonts
• Onboard Input Channels:
  - 8 x Standard Digital Inputs (24VDC)
  - 1 x High-Speed Counter / Shaft-encoder Input (up to 30 kHz, 32-bit)
  - 2 x Configurable Digital / Analog Inputs (0-10V, 0/4-20mA - 14-bit)
  - 2 x Direct Temperature Inputs (RTD PT100 / Thermocouple types B, E, J, K, N, R, S, T / Digital)
• Onboard Output Channels:
  - 10 x Transistor Outputs (pnp, includes 5 PWM channels up to 0.5 kHz)
  - 2 x Analog Outputs (0-10V, 4-20mA - 12-bit)
• Maximum I/O Capacity: Up to 512 I/O points via external expansion modules
• Built-in Communication Ports: 1 x RS232/RS485 port (Isolated)
• Optional Add-on Ports: Ethernet TCP/IP, CANbus, Secondary RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection Rating: IP65 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
