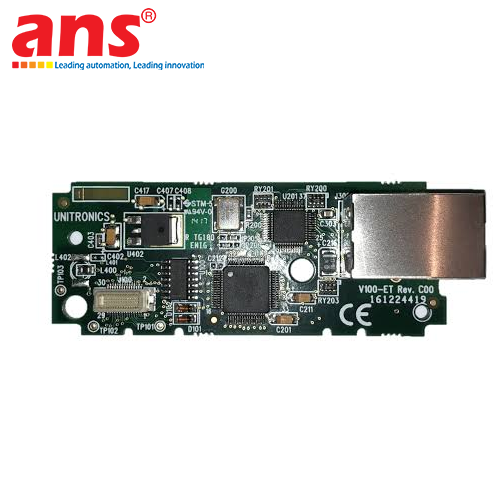

The Unitronics Model V100-17-ET2 Ethernet Communication Interface Module, engineered and manufactured by Unitronics Ltd. in Airport City, Israel, is a specialized add-on communication card designed to equip Unitronics Vision Series (Vision130™, Vision350™, Vision430™) and Samba™ Series All-in-One OPLCs with high-speed industrial TCP/IP networking.

Streamlined Embedded Enclosure Architecture:
Standard Vision and Samba controllers are supplied with basic serial or USB communication interfaces. To integrate the controllers into plant-wide Ethernet backbones, the V100-17-ET2 card snaps directly into a dedicated motherboard expansion header inside the controller's rear housing:
- Zero Cabinet Footprint Penalty: Mounts completely within the physical envelope of the OPLC chassis, exposing a standard RJ45 port through the rear casing without increasing enclosure depth or demanding DIN-rail allocation.
- Auto-Negotiating 10/100 Mbps Performance: Automatically detects network transmission speeds across standard industrial Star topology architectures driven by external industrial switches or hubs.
- Dual Diagnostic Status LEDs: Features an integrated green Link LED (LNK) indicating an established physical carrier connection and an amber Activity LED (ACT) flashing in proportion to real-time data transmission/reception packets (TX/RX).

Multi-Protocol Industrial Telemetry & Remote Management:
- Industrial Modbus TCP Protocol (Master / Slave): Seamlessly links PLC registers, memory coils, and structured data tables with enterprise SCADA nodes, secondary HMIs, variable frequency drives, and smart energy meters over standard Ethernet infrastructure.
- Virtual Network Computing (VNC) Remote Desktop Access: Authorizes control engineers and maintenance supervisors to view and manipulate the controller's active HMI display in real time using free VNC viewer utilities on PCs, laptops, Android, or iOS devices.
- Embedded HTML Web Server: Hosts custom web pages generated within the PLC application, enabling browser-based process parameter inspection and machine telemetry without proprietary client software.
- Automated Email Dispatch (SMTP): Continuously monitors critical alarms and triggers automated notification emails complete with fault descriptions, real-time timestamps, and process variable values.
- EtherNet/IP & Multi-Socket Networking: Integrates easily into multi-vendor industrial networks, supporting up to 8 concurrent TCP/IP sockets for simultaneous programming, SCADA polling, and peer controller communications.
- Rapid Ethernet Program Transfers: Cuts application download, OS upgrades, and graphic element upload times from minutes down to seconds compared to legacy serial connections.

Target Industrial Sectors & Applications:
- Water & Municipal Wastewater Infrastructure: Networking distributed lift stations, water treatment aeration skids, and reverse osmosis skids to central municipal SCADA servers over fiber/Ethernet links.
- Food, Beverage & Pharmaceutical Processing: Batch recipe tracking, clean-in-place (CIP) logging, and automated packaging lines requiring central data archiving for FDA 21 CFR Part 11 compliance.
- Commercial Building Automation & Energy (BMS / HVAC): Central chiller sequencing, cooling tower variable fan control, and electrical sub-metering telemetry integration over Modbus TCP.
- Original Equipment Manufacturers (OEM Machinery): Enables remote diagnostics, machine commissioning, and software updates over secure VPNs without requiring on-site service trips.
- Cold Chain Logistics & Environmental Warehouses: Real-time temperature/humidity logging with automated email alerting to protect temperature-critical stock.

• Manufacturer: Unitronics (Unitronics Ltd.)
• Country of Origin: 100% Israel (Made in Israel)
• Product Line: Vision & Samba Series Add-on Communication Modules
• Model Designation: V100-17-ET2
• Hardware Host Compatibility:
  - Unitronics Vision130™ Series (e.g., V130-33-R34, V130-33-T2...)
  - Unitronics Vision350™ Series (e.g., V350-35-R34, V350-35-T2...)
  - Unitronics Vision430™ Series
  - Unitronics Samba™ Series (Samba 3.5", Samba 4.3", Samba 7")
  - (Note: For Vision V200, V560, V570, V1040, and V1210 use model V200-19-ET2)
• Physical Port Configuration: 1x standard RJ45 port (8P8C connector)
• Data Transmission Speed: 10/100 Mbps (Automatic Auto-negotiation)
• Network Topology: Star network topology based on external commercial or industrial switches/hubs
• Recommended Cabling Specifications:
  - Category 5 STP (Shielded Twisted Pair) recommended for industrial noise immunity
  - Category 5 UTP (Unshielded Twisted Pair) also supported
• Maximum Drop Line Length: Up to 100 meters (between controller and switch or direct peer-to-peer)
• Integrated Diagnostic Status LEDs:
  - Green LED (LNK): Illuminates continuously when physical network link is verified
  - Yellow/Amber LED (ACT): Flashes dynamically during active data packet transmission (RX/TX)
• Supported Network Protocols:
  - Modbus TCP (Master and Slave functionality across concurrent sockets)
  - EtherNet/IP (I/O scanner and adapter modes)
  - BACnet IP (commercial building automation protocol)
  - Unitronics PCOM proprietary protocol
  - Raw TCP/IP & UDP messaging
  - Embedded HTTP Web Server
  - Integrated VNC Server (Remote operator desktop control)
  - SMTP Client (Automated event-triggered email alarms)
  - SNMP (Simple Network Management Protocol)
• Operating Power Supply: Ingested directly from the OPLC internal motherboard expansion bus
• Physical Installation: Direct plug-in card into the designated internal communication slot
• Environmental Ingress Rating: IP20 (fully enclosed within the host controller enclosure)
• Net Weight: Ultra-lightweight, approx. 22 g (0.77 oz)
• Operating Temperature Range: 0°C to +50°C (+32°F to +122°F)
• Storage Temperature Range: -20°C to +60°C (-4°F to +140°F)
• Operating Relative Humidity: 10% to 95% RH (non-condensing)
• Development Software: Unitronics VisiLogic™ (integrated Ethernet configuration function blocks)
• Compliance & Certifications: CE marked, UL & cULus Listed, EAC certified, RoHS compliant, ISO 9001.
