The Unitronics Model UAG-CX-XKPL600 UniStream® CX I/O Expansion Long Kit 6m (equipped with an Embedded Power Supply), engineered and manufactured by Unitronics Ltd. in Airport City, Israel, is a specialized hardware expansion solution designed for the UniStream® enterprise automation ecosystem.

Optimizing Control Enclosure Architecture:
When utilizing door-mounted UniStream Built-in controllers (featuring integrated PLC logic and touch displays), docking multiple Uni-I/O modules directly onto the rear chassis increases enclosure depth and creates bulky wire harnesses that flex and fatigue across the door hinge. The UAG-CX-XKPL600 kit solves this structural challenge:
- Relocates Uni-I/O™ and Uni-COM™ slices onto standard 35 mm DIN rails securely seated inside the main enclosure chassis or an adjacent cabinet.
- 6.0-Meter (600 cm) Extended Operating Span: Allows system integrators to position I/O slices directly adjacent to power relays, motor contactors, and terminal blocks, eliminating hundreds of meters of redundant field wiring.

Model Number Breakdown & Configuration (UAG-CX-XKPL600):
- UAG: Unitronics Adapter / Accessory Group (UniStream modular expansion accessory family).
- CX: Hardware profile engineered to dock directly into the dedicated I/O Expansion Jack found on UniStream Built-in controllers (e.g., US5-B5, US5-B10, US7-B5, US7-B10).
- XK: Local expansion adapter kit (Expansion Kit).
- P: Integrated embedded power supply on the End Unit (Embedded Power Supply).
- L: Long-Range Series (Factory-engineered for extended distances ranging from 6m to 30m with high-noise-immunity cabling).
- 600: Calibrated interconnecting cable length of 600 cm (6.0 meters).

Kit Hardware Topology & Interconnection Components:
1. Base Unit (UAG-CX-XBL-01): Compact plug-in interface that connects directly into the controller's I/O Expansion Jack, featuring a mechanical retaining latch and a bus cable receptacle.
2. CEPL-600 Interconnecting Shielded Cable: High-grade 6.0-meter multi-conductor shielded cable (Shielded Twisted Pair) terminated with molded, strain-relieved industrial connectors to eliminate noise coupling.
3. End Unit (DIN-Rail Mounting): Snaps directly onto standard 35 mm DIN rails, receiving the high-speed bus and serving as the mounting anchor for subsequent Uni-I/O™ and Uni-COM™ modules.
4. Embedded Power Supply Unit: Built directly into the End Unit, ingesting 12/24 VDC to power the expansion backplane and up to 16 attached Uni-I/O modules, preventing signal attenuation and voltage drop over the 6-meter span.

Key Engineering Features & Operational Advantages:
- High Density – Supports Up to 16 Uni-I/O Modules: Provides capacity to drive hundreds of digital and analog I/O points across a single DIN-rail row.
- Multi-Drop Daisy-Chaining: UniStream Built-in controllers support daisy-chaining up to 3 local expansion adapters, giving engineers total flexibility in multi-bay panel layouts.
- Integrated Diagnostic Status LEDs: The End Unit features diagnostic LEDs indicating power supply health (Power LED) and active bus communication integrity (Run/Error LED) for immediate troubleshooting.
- Industrial EMC Noise Immunity: The 6-meter shielded link provides heavy electromagnetic interference (EMI) rejection, maintaining error-free communication adjacent to high-power variable frequency drives and servo motor conduits.

Target Industrial Sectors & Applications:
- Food, Beverage & Packaging Machinery: Door-mounted UniStream HMI linked via UAG-CX-XKPL600 to DIN-rail I/O modules operating pneumatic manifolds, solid-state heaters, and stepper drives.
- Municipal Water & Pumping Infrastructure: Linking a front-panel operator interface to remote motor control center (MCC) cabinets located up to 6 meters away.
- Industrial Heat Recovery & Boilers: Positioning sensitive analog temperature modules away from radiating door surfaces to ensure thermal stability.
- Plastics, Rubber & Hydraulic Machinery: Distributing operator HMI controls at the operator station while locating I/O blocks at the rear hydraulic power skid.
- Automotive Automation & Robotic Cells: Gathering sensor signals across distributed tooling fixtures back to a central UniStream controller.

• Manufacturer: Unitronics (Unitronics Ltd.)
• Country of Origin: 100% Israel (Made in Israel)
• Product Family: UniStream® CX Series Long-Range Local Expansion Kits
• Model Designation: UAG-CX-XKPL600

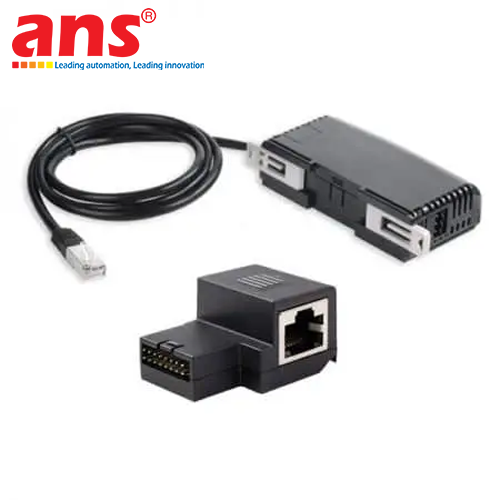

• Complete Kit Package Contents:
  - 1x Base Unit for Controller Jack (UAG-CX-XBL-01)
  - 1x Heavy-Duty Shielded Interconnecting Cable 6.0m (CEPL-600)
  - 1x DIN-Rail Mounted End Unit with Embedded Power Supply
• Host Controller Compatibility:
  - Plugs directly into UniStream® Built-in controllers equipped with an I/O Expansion Jack (e.g., US5-B5, US5-B10, US7-B5, US7-B10 series)
  - Or cascades from preceding CX End Units
• Bus Interconnection Length: 6.0 meters (600 cm / ~19.7 feet)
• Cable Construction: High-flex industrial shielded twisted-pair communication cable with molded strain relief
• I/O Expansion Capacity: Supports up to 16 Uni-I/O™ modules docked onto the End Unit DIN-rail bus
• Daisy-Chaining Capability: UniStream Built-in controllers support up to 3 local expansion kits in series
• EMBEDDED POWER SUPPLY SPECIFICATIONS:
  - Input Operating Voltage: 12 VDC or 24 VDC nominal (Permissible range 10.2 to 28.8 VDC)
  - Bus Current Delivery: Generates internal 5 VDC and 3.3 VDC bus rails to power up to 16 Uni-I/O modules
  - Power Input Terminals: Detachable screw terminal block (Pluggable Euro-block)
• DIAGNOSTIC INDICATION:
  - Power LED: Visual confirmation of internal 12/24 VDC power supply health
  - Bus Status LED: Dynamic confirmation of bus data exchange and error detection
• MECHANICAL & ENVIRONMENTAL:
  - Base Unit Mounting: Plugs directly into controller expansion jack with mechanical clips
  - End Unit Mounting: Standard 35 mm DIN-rail mounting conforming to EN 50022
  - Enclosure Material: Heavy industrial flame-retardant polyamide thermoplastic
  - Ingress Protection Rating: IP20 conforming to IEC 60529
• ENVIRONMENTAL RATINGS:
  - Operating Ambient Temperature: -20°C to +55°C (-4°F to +131°F)
  - Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
  - Operating Relative Humidity: 5% to 95% RH (non-condensing)
  - Shock & Vibration Resistance: Conforming to IEC 60068-2-6 and IEC 60068-2-27
• Net Package Weight: Approx. 520 g (including 6m cable and both adapter blocks)
• Compliance & Certifications: CE marked, cULus Listed, RoHS compliant, ISO 9001 certified manufacturing.
