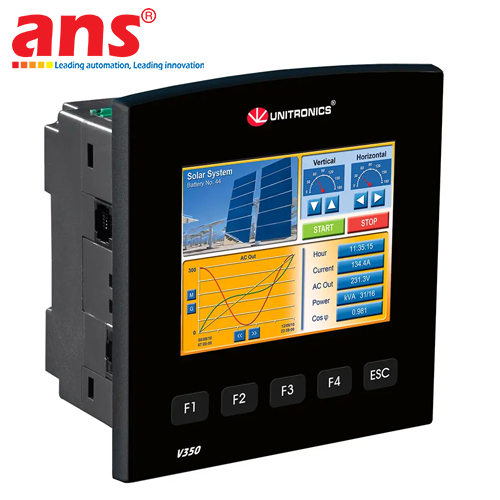

The Vision V350-35-TR34 Touch PLC + HMI is a high-density All-in-One industrial automation controller belonging to the Vision350™ series developed by Unitronics (Israel). Combining a high-speed Programmable Logic Controller (PLC), a 3.5-inch color touchscreen with an integrated numeric keypad, and a comprehensive onboard Input/Output (I/O) architecture featuring both isolated relay outputs and high-speed transistor pulse outputs, the V350-35-TR34 delivers an all-inclusive solution for complex machine automation without requiring extra expansion hardware.

1. High-Quality 3.5" Color Touchscreen & Integrated Keypad:
The unit features a 3.5-inch TFT LCD resistive touch display with QVGA resolution (320 x 240 pixels) and 65,536 vivid colors. The screen accommodates detailed graphical process diagrams, real-time trend graphs, and alarm logs. In addition to touch operation, the front panel includes an integrated numeric keypad and customizable function keys, allowing operators to enter numeric setpoints quickly and accurately even while wearing industrial protective gloves. The front panel holds an IP65/NEMA4X ingress protection rating, shielding internal electronics against industrial dust and direct water spray.

2. High-Density Onboard I/O Architecture (TR34 Model):
The V350-35-TR34 is factory-equipped with a rich variety of integrated I/O points:
- Digital Inputs: 22 x 24 VDC digital inputs (configurable via wiring to include 2 analog inputs: 0-10V, 0/4-20mA with 10-bit resolution).
- High-Speed Counter Inputs (HSC / Shaft-encoder): Includes 3 high-speed counter inputs operating up to 200 kHz (32-bit), ideal for high-precision rotary encoder position and speed tracking.
- Relay Outputs: 8 x isolated relay outputs (rated up to 3A load switching) for direct actuation of contactors, solenoid valves, and indicator lights.
- High-Speed Transistor Outputs: 4 x high-speed NPN transistor outputs (supporting PWM and Pulse Train Output (PTO) frequencies from 5 Hz up to 200 kHz, including 3 PTO channels) designed for high-precision stepper and servo drive positioning.
- Scalability: Easily expandable up to 512 local/remote I/O points via Unitronics expansion modules.

3. Fast Processing Engine & Flexible Industrial Connectivity:
- High-speed PLC processing engine executing bit logic operations rapidly (15 µs per 1K of typical application), supporting up to 24 independent Auto-tune PID control loops.
- Memory: 512 KB application logic, 1024 KB for HMI images, and 512 KB for custom fonts.
- MicroSD card slot for continuous data logging, alarm history recording, recipe management, and system backup cloning.
- Built-in Communication: Includes 1 x Isolated RS232/RS485 serial communication port.
- Optional Add-on Communication Modules: Ethernet TCP/IP, CANbus, secondary RS232/RS485, or Profibus Slave modules.
- Protocols Supported: Modbus RTU/TCP, BACnet, SNMP, CANopen, UniCAN, GSM/GPRS SMS notifications, and remote monitoring/control via built-in Web Server and VNC client.

4. Unified Free Single-Environment Software (VisiLogic™):
Both PLC ladder logic development and HMI GUI screen design are programmed within the free VisiLogic™ software suite. Engineers eliminate the need to map cross-device tag databases between separate hardware, resulting in dramatically reduced commissioning time.
