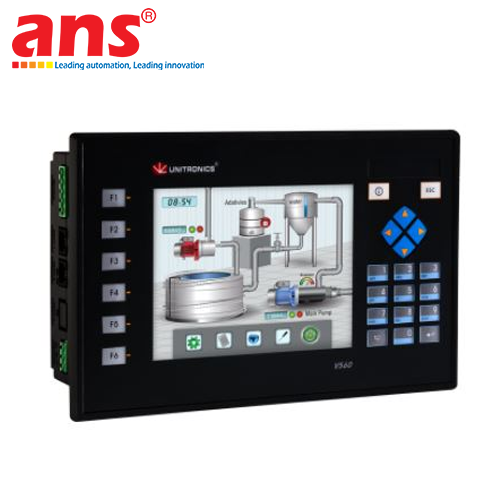

The Vision V560-T25B Touch PLC + HMI is an advanced All-in-One industrial automation controller belonging to the Vision560™ series developed by Unitronics (Israel). By seamlessly integrating a high-speed Programmable Logic Controller (PLC) with a 5.7-inch color Human-Machine Interface (HMI) touchscreen into a single compact unit, the V560-T25B eliminates PLC-to-HMI wiring, conserves panel space, and slashes engineering development time.

1. High-Quality 5.7" Color Touchscreen & Heavy-Duty Design:
The controller features a 5.7-inch TFT LCD resistive touch display with QVGA resolution (320 x 240 pixels) and 65,536 vivid colors. Designed with a rugged front bezel, the V560 model provides enhanced mechanical protection in demanding industrial environments. The screen accommodates detailed graphical process layouts, real-time trend graphs, alarm logs, and customizable touch-activated virtual function keys. Its front panel holds an IP65/NEMA4X ingress protection rating, making it impervious to water spray and industrial dust ingress.

2. Fast Execution PLC Engine & Scalable I/O Capacity:
- High-speed PLC processing engine executing bit logic operations in just 0.09 µs.
- Abundant onboard memory: 2 MB for application logic, 1 MB for HMI displays, and 512 KB for custom fonts.
- Built-in SD card slot for continuous data logging, alarm history recording, recipe management, and system backups.
- Flexible I/O Expansion: Supports a rear-mounted Snap-in I/O module (combining Digital, Analog, Temperature PT100/TC, and Load Cell inputs/outputs), and expandable up to 1024 I/Os via local or remote expansion modules.

3. Versatile Industrial Networking Options:
- Standard Onboard Ports: Equipped with 1 x Isolated RS232/RS485 port and 1 x CANbus port (supporting CANopen, UniCAN, SAE J1939).
- Expansion Port Add-ons: Option to add Ethernet TCP/IP, a secondary RS232/RS485, or a Profibus Slave module.
- Comprehensive Industrial Protocols: Native support for Modbus RTU/TCP, BACnet, SNMP, GSM/GPRS SMS notifications, and remote control/monitoring via built-in Web Server and VNC client.

4. Unified Single-Environment Software (VisiLogic™):
Both PLC ladder logic development and HMI GUI screen design are created within a single, free software package – VisiLogic™. This eliminates cross-tagging databases between separate PLC and HMI environments, resulting in rapid development cycles and reduced engineering errors.

• Manufacturer: Unitronics
• Product Series: Vision560™ Series (All-in-One PLC + HMI)
• Model Designation: V560-T25B
• Display Size & Type: 5.7-inch TFT LCD Touchscreen
• Display Resolution: QVGA (320 x 240 pixels)
• Color Depth: 65,536 colors (16-bit)
• Touchscreen Technology: Resistive Touchscreen
• Operating Power Supply: 12 / 24 VDC (10.2 to 28.8 VDC range)
• Memory Capacity: 2 MB Logic, 1 MB HMI images, 512 KB Fonts
• External Storage: SD Card slot
• Maximum I/O Capacity: Up to 1024 I/O points via Snap-in and Expansion Modules
• Built-in Communication Ports:
  - 1 x RS232/RS485 (Isolated)
  - 1 x CANbus port
• Optional Add-on Ports: Ethernet TCP/IP, RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection: IP65 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
