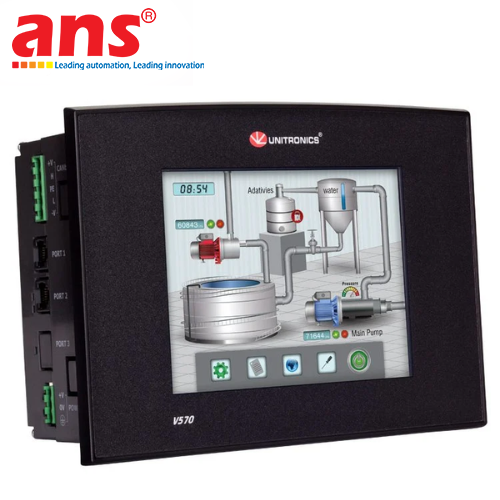

The Vision V570-57-T20B-J Touch PLC + HMI is an advanced All-in-One industrial automation controller belonging to the Vision570™ series developed by Unitronics (Israel). The "J" model features a sleek, flat-bezel front design that facilitates easy cleaning and prevents dust or chemical residue accumulation, making it ideal for hygienic environments such as pharmaceutical processing, food & beverage plants, and cleanrooms.

1. Flat-Bezel 5.7" Color Touchscreen & Robust Enclosure:
The controller features a 5.7-inch TFT LCD resistive touch display with QVGA resolution (320 x 240 pixels) and 65,536 vivid colors. The flat surface allows effortless washdown and maintenance. Its front panel holds an IP65/NEMA4X ingress protection rating, shielding internal components against washdown spray and industrial dust.

2. Fast Execution PLC Engine & Scalable I/O Capacity:
- High-speed PLC processing engine executing bit logic operations in just 0.09 µs.
- Abundant onboard memory: 2 MB for application logic, 1 MB for HMI displays, and 512 KB for custom fonts.
- Built-in SD card slot for continuous data logging, alarm history recording, recipe management, and system backups.
- Flexible I/O Expansion: Supports a rear-mounted Snap-in I/O module (combining Digital, Analog, Temperature PT100/TC, and Load Cell inputs/outputs), and expandable up to 1024 I/Os via local or remote expansion modules.

3. Versatile Industrial Networking Options:
- Standard Onboard Ports: Equipped with 1 x Isolated RS232/RS485 port and 1 x CANbus port (supporting CANopen, UniCAN, SAE J1939).
- Expansion Port Add-ons: Option to add Ethernet TCP/IP, a secondary RS232/RS485, or a Profibus Slave module.
- Comprehensive Industrial Protocols: Native support for Modbus RTU/TCP, BACnet, SNMP, GSM/GPRS SMS notifications, and remote control/monitoring via built-in Web Server and VNC client.

4. Unified Single-Environment Software (VisiLogic™):
Both PLC ladder logic development and HMI GUI screen design are created within a single, free software package – VisiLogic™. This eliminates cross-tagging databases between separate PLC and HMI environments, resulting in rapid development cycles and reduced engineering errors.
