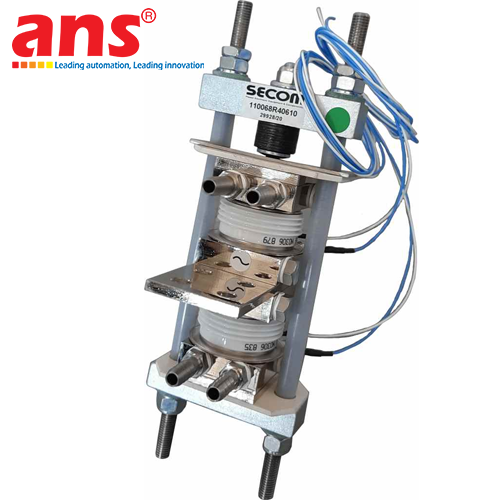

The High-Power Press-Pack Capsule Rectifier Diode (Part Number: 2000022) supplied and certified by premier Italian power electronics manufacturer SECOM s.r.l. is an industrial-grade semiconductor designed for extreme current-carrying duty in heavy-duty AC/DC rectification systems. It provides continuous forward currents up to 3400A and blocking voltages up to 2600V.

PRODUCT SPECIFICATIONS & FEATURES (PART NO: 2000022):
- Part Number: 2000022
- Manufacturer: SECOM s.r.l. (Italy)
- Device Category: Press-Pack / Hockey-Puk High-Power Rectifier Diode
- Mean Forward Current ($I_{FAV}$): 3400 A (under standard industrial double-side cooling conditions).
- Repetitive Peak Reverse Voltage ($V_{RRM}$): 2600 V, providing superior immunity against grid transients, lightning surges, and inductive load switching overvoltages.
- Ceramic Capsule Housing: Hermetically sealed ceramic disc housing with precision flat nickel-plated copper pole faces, offering extended creepage and clearance distances to prevent surface flashovers in humid and dusty environments.
- Double-Side Cooling Architecture: Designed for mounting between two high-efficiency forced-air or liquid-cooled aluminum heatsinks, facilitating immediate thermal conduction away from the silicon wafer junction.

KEY ADVANTAGES:
- High Surge Current Capability (High $I_{FSM}$ / $I^2t$): Engineered to withstand severe short-circuit fault conditions and heavy inrush spikes characteristic of arc furnaces and heavy motor drives.
- Low Forward Voltage Drop ($V_{FM}$): Minimizes internal conduction losses, reducing operating temperatures and maximizing overall electrical efficiency in high-current converter bridges.
- Direct Compatibility with SECOM Power Stacks: Seamlessly integrates into SECOM GR.6 modular bridges, custom electrolysis rectifiers, and medium-voltage industrial converters as a reliable drop-in replacement.

• Manufacturer: SECOM s.r.l.
• Origin: Italy
• Part Number: 2000022
• Component Category: High-Power Press-Pack Rectifier Diode (Hockey-Puk Capsule)
• Maximum Average Forward Current (Ifav): 3400 A
• Repetitive Peak Reverse Voltage (Vrrm): 2600 V
• RMS Forward Current (Irms): Up to ~5300 A (cooling dependent)
• Peak Non-Repetitive Surge Current (Ifsm): Approx. 40 – 50 kA (10ms half-sine pulse)
• Surge Energy Capability (I²t): Optimized for high-speed semiconductor fuse coordination
• Forward Voltage Drop (Vfm): ≤ 1.35 V (at rated peak current)
• Housing Technology: Hermetically sealed industrial ceramic capsule
• Thermal Management: Double-side cooling (DSC) via clamped heatsinks
• Recommended Clamping Force: 35 – 45 kN (per SECOM application guidelines)
• Maximum Operating Junction Temperature (Tjmax): -40°C to +160°C (or +175°C)
• Storage Temperature Range: -40°C to +175°C
• Typical Applications: High-power 6-pulse and 12-pulse bridge rectifiers, chemical electrolysis DC power plants, metallurgical DC arc furnaces, railway traction rectifiers, and synchronous machine static excitation systems.
