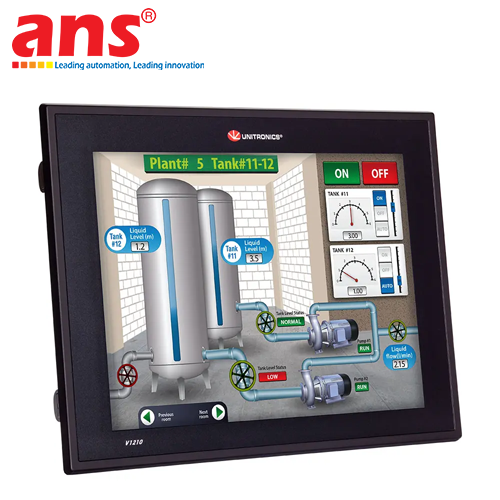

The Vision V1210-T20BJ Touch PLC + HMI is a premium All-in-One industrial automation controller belonging to the Vision1210™ series developed by Unitronics (Israel). By seamlessly combining a powerful Programmable Logic Controller (PLC) with an advanced Human-Machine Interface (HMI) into a single compact device, the V1210-T20BJ eliminates PLC-to-HMI wiring, reduces panel space, and slashes programming development time.

1. High-Resolution 12.1" Color Touchscreen Display:
The unit features a large 12.1-inch TFT LCD resistive touch display with SVGA resolution (800 x 600 pixels) and 65,536 vivid colors. The expansive screen allows engineers to design clear graphical process diagrams, real-time trend charts, alarm management screens, and customizable virtual function keys. The front panel is IP65/NEMA4X rated, providing robust resistance against dust ingress and water spray in harsh industrial environments.

2. Powerful PLC Processing Engine & Massive Expansion:
- Ultra-fast logic execution engine capable of executing bit operations in just 0.09 µs.
- Generous memory allocation: 2 MB for application logic, 1 MB for HMI graphics, and 512 KB for custom fonts.
- MicroSD card slot for extensive data logging, alarm history tracking, system backups, and recipe management.
- Expandable I/O Architecture: Supports direct attachment of 1 Snap-in I/O module to the rear of the unit, and expandable up to 1024 local/remote I/Os (Digital, Analog, Temperature PT100/Thermocouple, Weighing Load Cells) via expansion modules.

3. Comprehensive Industrial Communication Networking:
- Onboard Ports: Equipped with 1 x Isolated RS232/RS485 port and 1 x CANbus port (supporting CANopen, UniCAN, SAE J1939).
- Add-on Port Options: Customizable with optional Ethernet TCP/IP, secondary RS232/RS485, or Profibus Slave modules.
- Supported Protocols: Native support for Modbus RTU/TCP, BACnet, SNMP, GSM/GPRS SMS notifications, and remote monitoring/control via built-in Web Server and VNC client.

4. Unified Single-Environment Software (VisiLogic™):
Both PLC ladder logic programming and HMI GUI design are developed within a single, free software package – VisiLogic™. This eliminates data mapping tag databases between separate PLC and HMI environments, dramatically boosting engineering productivity.

• Manufacturer: Unitronics
• Product Series: Vision1210™ Series (All-in-One PLC + HMI)
• Model Designation: V1210-T20BJ
• Display Size & Type: 12.1-inch TFT LCD Touchscreen
• Display Resolution: SVGA (800 x 600 pixels)
• Color Depth: 65,536 colors (16-bit)
• Touchscreen Technology: Resistive Touchscreen
• Operating Power Supply: 12 / 24 VDC (10.2 to 28.8 VDC range)
• Memory Capacity: 2 MB Logic, 1 MB HMI images, 512 KB Fonts
• External Storage: MicroSD card slot (up to 32 GB supported)
• Maximum I/O Capacity: Up to 1024 I/O points via Snap-in and Expansion Modules
• Built-in Communication Ports:
  - 1 x RS232/RS485 (Isolated)
  - 1 x CANbus port
• Optional Add-on Ports: Ethernet TCP/IP, RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection: IP65 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
