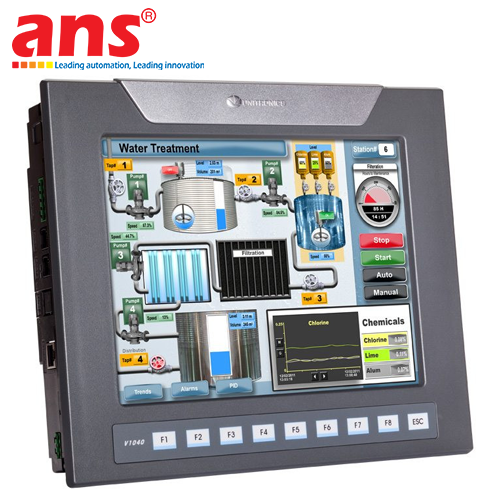

The Vision V1040-T20B Touch PLC + HMI is a high-performance All-in-One industrial automation controller belonging to the flagship Vision1040™ series developed by Unitronics (Israel). By seamlessly combining a powerful Programmable Logic Controller (PLC) with an advanced Human-Machine Interface (HMI) into a single compact device, the V1040-T20B eliminates PLC-to-HMI wiring, reduces panel space, and slashes programming development time.

1. High-Resolution 10.4" Color Touchscreen & Integrated Keys:
The unit features a large 10.4-inch TFT LCD resistive touch display with SVGA resolution (800 x 600 pixels) and 65,536 vivid colors, delivering crisp graphic visualization for complex industrial processes. The screen accommodates detailed SCADA-like process layouts, real-time trend charts, alarm logs, and recipe management screens. Built-in function keys on the front panel allow quick operator navigation. The front panel holds an IP65/NEMA4X ingress protection rating, making it impervious to water spray and industrial dust.

2. Fast Execution PLC Engine & Massive Scalability:
- High-speed PLC execution engine processing bit logic in just 0.09 µs.
- Abundant onboard memory: 2 MB for application logic, 1 MB for HMI displays, and 512 KB for custom fonts.
- Built-in MicroSD card slot for continuous data logging, alarm history tracking, system backups, and recipe transfer.
- Flexible I/O Scalability: Supports direct snap-in mounting of 1 Snap-in I/O module (Digital, Analog, Temperature, Load Cell) on the back of the controller, and expandable up to 1024 local/remote I/Os via expansion modules.

3. Versatile Industrial Networking & Connectivity:
- Standard Built-in Ports: 1 x Isolated RS232/RS485 port and 1 x CANbus port (supporting CANopen, UniCAN, SAE J1939).
- Expansion Port Add-ons: Option to add Ethernet TCP/IP, secondary RS232/RS485, or Profibus Slave modules.
- Supported Protocols: Native support for Modbus RTU/TCP, BACnet, SNMP, GSM/GPRS SMS alerts, and remote access via built-in Web Server and VNC client.

4. Unified Single-Environment Software (VisiLogic™):
Both PLC ladder logic programming and HMI GUI screen design are created within a single, free software package – VisiLogic™. This eliminates cross-tagging databases between separate PLC and HMI environments, significantly increasing engineering efficiency.

• Manufacturer: Unitronics
• Product Series: Vision1040™ Series (All-in-One PLC + HMI)
• Model Designation: V1040-T20B
• Display Size & Type: 10.4-inch TFT LCD Touchscreen
• Display Resolution: SVGA (800 x 600 pixels)
• Color Depth: 65,536 colors (16-bit)
• Touchscreen Technology: Resistive Touchscreen
• Operating Power Supply: 12 / 24 VDC (10.2 to 28.8 VDC range)
• Memory Capacity: 2 MB Logic, 1 MB HMI images, 512 KB Fonts
• External Storage: MicroSD card slot (up to 32 GB supported)
• Maximum I/O Capacity: Up to 1024 I/O points via Snap-in and Expansion Modules
• Built-in Communication Ports:
  - 1 x RS232/RS485 (Isolated)
  - 1 x CANbus port
• Optional Add-on Ports: Ethernet TCP/IP, RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection: IP65 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
