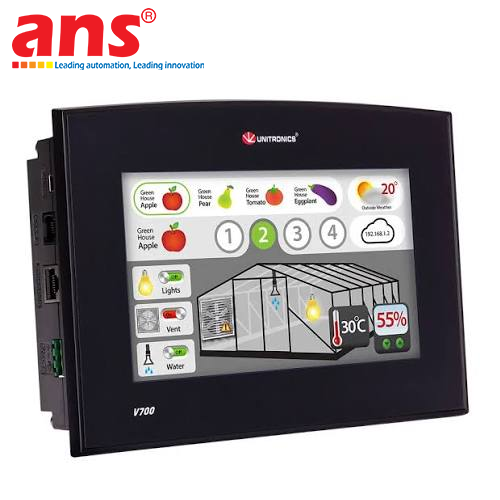

The Vision V700-T20BJ Touch PLC + HMI is an advanced All-in-One industrial automation controller belonging to the Vision700™ series developed by Unitronics (Israel). By integrating a high-speed Programmable Logic Controller (PLC) with a flat-bezel 7-inch widescreen Human-Machine Interface (HMI) into a single compact device, the V700-T20BJ minimizes control panel footprint, eliminates PLC-to-HMI wiring, and lowers overall system costs.

1. Sleek 7.0" WVGA Flat Touchscreen & Robust Enclosure:
The controller features a 7.0-inch wide-aspect TFT LCD resistive touchscreen with WVGA resolution (800 x 480 pixels) and 65,536 colors. The flat-bezel front design prevents dirt buildup and simplifies splash-down cleaning in hygienic environments. Its front panel holds an IP65/NEMA4X ingress protection rating, shielding the internal electronics against dust and water jets. The high-resolution display supports detailed graphical process visualization, real-time trend charts, alarm screens, and customizable touch keys.

2. Fast Execution PLC Engine & Scalable I/O Options:
- High-speed PLC processing engine executing bit logic operations in a blazing 0.09 µs.
- Abundant onboard memory: 2 MB for application logic, 1 MB for HMI graphics, and 512 KB for custom fonts.
- Built-in MicroSD card slot (up to 32GB) for continuous data logging, alarm history recording, recipe management, and system cloning.
- Modular I/O Flexibility: Supports a rear-mounted Snap-in I/O module (combining Digital, Analog, Temperature PT100/TC, and Load Cell inputs/outputs), and expandable up to 512 I/Os via local/remote expansion modules.

3. Built-in Ethernet & Advanced Networking:
- Standard Built-in Ports: Unlike smaller models, the V700-T20BJ comes factory-equipped with 1 x Ethernet TCP/IP port, 1 x Isolated RS232/RS485 port, and 1 x CANbus port (supporting CANopen, UniCAN, SAE J1939).
- Optional Expansion Ports: Option to add a secondary RS232/RS485 or Profibus Slave port.
- Comprehensive Protocol Support: Modbus RTU/TCP, BACnet, SNMP, GSM/GPRS SMS notifications, and remote monitoring/control via built-in Web Server and VNC client capabilities.

4. Single-Environment Development via Free VisiLogic™:
Both PLC logic development and HMI screen creation are designed using the single, free VisiLogic™ software suite. Engineers do not need to construct complex tag-sharing databases between independent devices, resulting in rapid development cycles.

• Manufacturer: Unitronics
• Product Series: Vision700™ Series (All-in-One PLC + HMI)
• Model Designation: V700-T20BJ
• Display Size & Type: 7.0-inch Widescreen TFT LCD Touchscreen (Flat bezel)
• Display Resolution: WVGA (800 x 480 pixels)
• Color Depth: 65,536 colors (16-bit)
• Touchscreen Technology: Resistive Touchscreen
• Operating Power Supply: 12 / 24 VDC (10.2 to 28.8 VDC range)
• Memory Capacity: 2 MB Logic, 1 MB HMI images, 512 KB Fonts
• External Storage: MicroSD card slot (up to 32 GB supported)
• Maximum I/O Capacity: Up to 512 I/O points via Snap-in and Expansion Modules
• Built-in Communication Ports:
  - 1 x Ethernet TCP/IP port
  - 1 x RS232/RS485 (Isolated)
  - 1 x CANbus port
• Optional Add-on Ports: Secondary RS232/RS485, Profibus Slave
• Industrial Protocols: Modbus RTU/TCP, CANopen, UniCAN, BACnet, SNMP, Web Server, VNC
• Ingress Protection: IP65 / NEMA4X front panel seal
• Operating Temperature: 0°C to 50°C
• Standards & Certifications: CE, cULus listed, RoHS compliant
• Country of Origin: Israel
