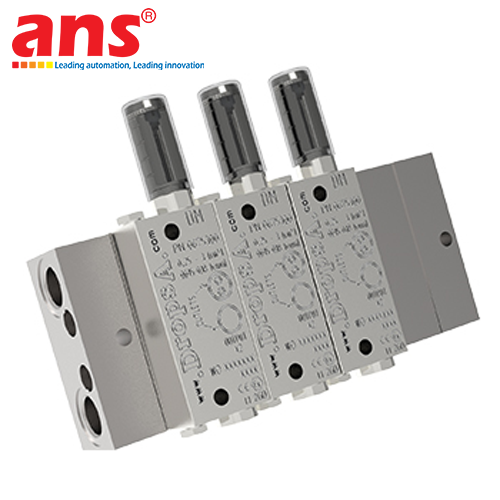

The DropsA 0675300 DIVIDE VALVE (manufacturer engineering part designation: 02 MOD-MODULAR VALVE 3CC AVP) is an integral component of the renowned Modular Dual Line Divider Valves Series 02 engineered and manufactured by DropsA S.p.A (Italy). Specifically designed for heavy-duty centralized dual-line automated lubrication networks, this precision metering element serves industrial equipment installations characterized by widely dispersed lubrication lube points operating under extreme mechanical loads, thermal stresses, and airborne contaminant environments.

The decisive engineering advantage of the DropsA Series 02 modular platform is its split-body Modular Architecture. The assembly is bifurcated into two functionally independent assemblies: the permanent base manifold and the replaceable metering valve block. Consequently, primary distribution feed lines and secondary lubrication lines feeding directly into bearings remain permanently plumbed to the base manifold. Whenever maintenance, inspection, or discharge volume adjustments are required, technicians can remove the 0675300 metering block simply by loosening the retention screws. This eliminates the need to dismantle piping connections, prevents hydraulic fluid spillage, avoids air entrapment in lines, and slashes routine system servicing downtime by up to 80%.

Model 0675300 features an adjustable discharge configuration, providing flexible metering adjustment ranging from 0.25 cm³ up to 3.0 cm³ per discharge cycle by utilizing the built-in travel adjustment screw situated beneath the protective cap. The valve is furnished with two standard output ports and easily converts into a single combined outlet by simply interchanging internal sealing plugs, doubling the single-point dispensing capacity up to 6.0 cm³ per cycle for large, high-friction friction zones. A mechanical visual indicator pin projecting from the valve bonnet reciprocates directly with internal piston stroke dynamics, providing field maintenance staff with immediate, fail-safe visual verification of positive lubricant displacement without requiring external electrical sensors.

Constructed from premium heat-treated alloy steel, the external body features advanced electroless nickel plating (Nickel Plated Treatment) that delivers maximum protection against atmospheric humidity, acidic vapors, aggressive process coolants, and airborne metallic dust found in steel rolling mills and cement plants. The valve delivers flawless hydraulic performance under continuous high-pressure operations up to 400 bar (5800 psi), accommodating lubricants spanning from industrial lubricating oils with a minimum viscosity of 100 cSt to heavy-duty extreme-pressure lubricating greases up to NLGI Grade 2 consistency.

• Manufacturer: DropsA S.p.A
• Country of Origin: Italy (100% EU Origin)
• Complete Part Number: DROPSA 0675300 DIVIDE VALVE
• Technical Engineering Code: 02 MOD-MODULAR VALVE 3CC AVP (Modular Dual Line Metering Element)
• Product Line: Modular Dual Line System Series 02
• Maximum Working Inlet Pressure: 400 bar (5800 psi)
• Maximum Cycle Frequency: Up to 100 cycles per minute
• Adjustable Lubricant Discharge per Cycle: 0.25 cm³ to 3.0 cm³ (stepless adjustment via limit screw)
• Single Outlet Merged Flow Capacity: Up to 6.0 cm³ per cycle (via internal port plug modification)
• Number of Standard Outlets: 2 independent lubrication outlets
• Compatible Lubricants:
  - Mineral and synthetic oils: Minimum viscosity 100 cSt (462 SSU)
  - Industrial lubricating greases: Up to NLGI Grade 2 (265 ASTM)
• Operating Temperature Range: -30°C to +80°C (-22°F to +176°F)
• Associated Manifold Base Connections:
  - Main Inlet Ports: 3/8" BSP or 3/8" NPTF
  - Outlet Feeder Ports: 1/4" BSP or 1/4" NPTF
• Operational Motion Indication: Integrated mechanical visual indicator pin
• Material & Surface Finishing: Precision-machined alloy steel with heavy-duty anti-corrosion nickel plating
• Mounting Style: Direct bolt-down interface onto Modular Dual Line intermediate, inlet, or end bases
• Primary Industrial Applications: Heavy-duty dual-line centralized grease and oil lubrication systems
