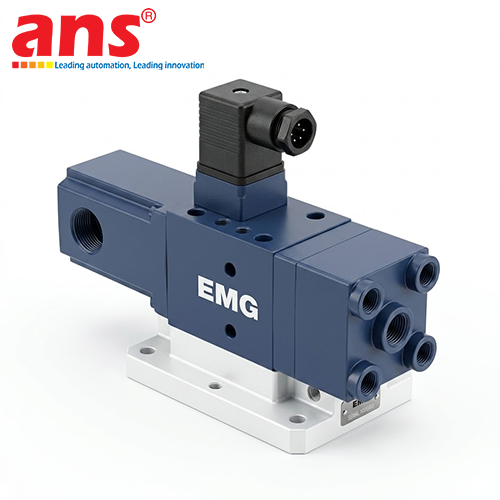

EMG SV1-10/48/100/6

Product Overview: The EMG SV1-10/48/100/6 single-stage electro-hydraulic proportional servo valve is a premium process-grade fluid logic instrument belonging to the world-renowned high-capacity SV1 Series portfolio, engineered and manufactured 100% in Germany by EMG Automation GmbH. Within advanced metallurgical plants, hot and cold strip steel rolling mills, high-velocity continuous coil galvanizing lines, and industrial automated multi-axis servo-hydraulic cells, executing high-resolution volumetric fluid control under aggressive system pressures requires field components that exhibit supreme mechatronic response times and low hydraulic wear decay.

The SV1-10/48/100/6 configuration targets this metric directly, shifting its inner control spool position with exceptional linear accuracy relative to the oncoming current control signaling, transforming digital supervisory PLC instructions into high-thrust mechanical output vectors to track item pathways across continuous 24/7 operations with minimum mechanical deviation.

Functional Operating Paradigm and Product Nomenclature Decoding: The underlying technological paradigm driving the EMG SV1-10/48/100/6 variant leverages sophisticated 4/3-way proportional fluid routing combined with an advanced integrated Electromagnetic Rotary Drive assembly. When the internal electrical coil receives a modulated current control input from the drive amplifier card, it generates an instantaneous proportional torque vector that turns the armature shaft through a precise micro-degree angle. This rotative traction is mechanically coupled to translate into linear force, shifting the control spool along the inner valve chamber core with high resolution. The smooth movement of the spool alters the open geometric orifice area of the fluid channels, continuously metering fluid speed and directing high-pressure hydraulic oils straight to the active cylinder ports. Crucially, the valve mechanics incorporate dual-ended, pre-loaded mechanical return springs that force the spool back to a secure safe center neutral zone immediately if system input power fails.

According to EMG's official ordering criteria, the comprehensive product code string SV1-10/48/100/6 decodes into the following integrated technical block matrix:

• SV: Identifies the hardware module functioning as a Proportional Electro-Hydraulic Servo Valve instrument.

• 1: Specifies a high-speed single-stage layout driven directly by the electromagnetic armature.

• 10: Configures the physical mounting manifold footprint for standard industrial NG10 size parameters.

• 48: Rates the nominal volumetric fluid handling capacity at exactly 48 liters per minute (48 l/min).

• 100: Establishes the structural operational line pressure boundary parameter at 100 bar.

• 6: Represents Leuze's internal electronic internal control winding and coil configuration variant code.

Mechanical Hardening & Global Mounting Manifold Standards: The valve infrastructure features a heavy-duty 4/3-way plumbing configuration block, sorting 4 fundamental process fluid gates: pressure inlet P (Pressure), system return T (Tank), and two independent actuator control ports labeled A and B, matched across 3 distinct mechanical positioning loops. This setup enables automation engineers to drive double-acting industrial cylinders or continuous high-torque hydraulic motors with seamless variable direction control.

The primary mechanical asset of this build variant centers on its absolute compliance with global standard mounting parameters—specifically ISO 4401 NG10 (matching CETOP 5 standard dimensions). This standardized subplate interface allows field crews to mount the valve directly onto existing centralized manifold blocks, scaling down system plumbing overheads and minimizing automated facility downtime during field changeouts. The heavy-walled outer housing frame is cast entirely from industrial-grade high-density gray iron, bringing a total net hardware mass spanning from 6.5 kg to 7.5 kg. This thick structural mass dampens mechanical vibration harmonics and absorbs structural physics shocks easily inside aggressive rolling mills. The absolute geometric dimensions measure roughly 127 x 72 x 264 mm.

🛠️ FIELD FLUID Commissioning RULES & PREVENTATIVE MAINTENANCE:

• Strict Fluid Medium Filtration Parameters: Because the mechanical operational tolerance clearance gap between the polished con trượt spool and the inner chamber bore wall tracks down to narrow micrometer variables, the internal valve core is highly vulnerable to micro-particle friction and metallic scale tracking. To guarantee the operational lifecycle of the servo-hydraulic loop, the driving oil medium must be continuously refined via specialized panel filtration to maintain a minimal particulate cleanliness rating corresponding to NAS 1638 Class 7 or ISO 4406 18/15/13 boundaries. Periodic chemical oil sampling is strongly mandated to prevent varnish binding errors.

• Interface Gasket Compression Alignment: Prior to torqueing down the high-tensile fasteners locking the valve body to the Cetop 5 subplate base, field electrical crews must thoroughly clean the manifold block face and audit the alignment elasticity of the pre-supplied sealing gasket O-rings. This validation prevents dynamic fluid micro-seepage when the hydraulic circuit experiences full pressure loading up to 100 bar.
