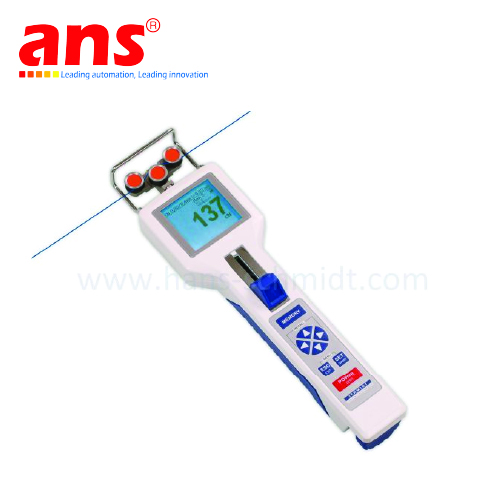

DTX-60K-V1 Tension Meter Hans-schmidt Vietnam

Special Features

Additional functions in comparison to basic instrument DTS

Memory for 60.000 readings
USB interface

Tension meter DTX with 5 different memory modes:

• Mode S: statistics only
• Mode H: storage of the X-Y-diagram for reviewing after finishing a series of measurement (e.g. short time spooling)
• Mode C: continuous logging over a user set time and different series of measurement (2 Hz)
• Mode F: fast, continuous logging over a user set time and different series of measurement (1000 Hz)
• Mode D: storage of single readings and statistic

2 factory adjustment, as well as 9 Material memory locations for customer made calibrations
Software Tension Inspect 3 for displaying real-time readings on a PC and to store them into a file
Wi-Fi modul for wireless communication with a PC (optional)

Function of basic instrument DTS

Tension meter DTX with large, backlight LCD-display
3 different display modes:
– numeric
– numeric with bargraph
– numeric with graph (Time-Tension)

The display rotates in 90° steps for better reading
New, unique, force reduced material catching system
Thickness compensation: to reach highest accuracy the diameter of the material to be measured can be set with a wheel and will be displayed in the screen (not available for all models)
