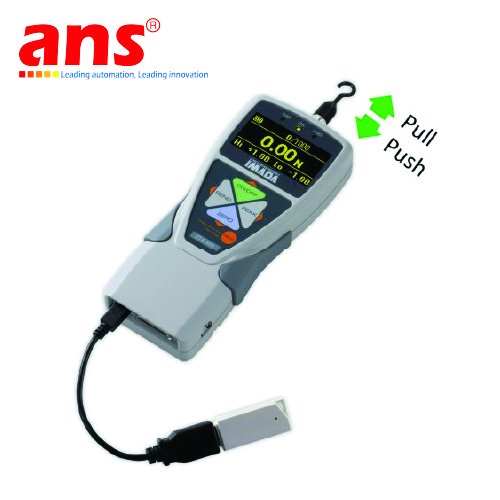

Force Gauge ZTA-5000N Hans-schmidt Vietnam

Special Features

2 operation modes:
real time – display the actual tension or compression force
peak force – to measure the peak force during a test

Force gauge ZTA with extremely high sampling rate of 2000 times/sec for fast acquisition of peak values

Display update time 16 times/sec

Easy to read display (OLED)

The header and footer of the display can be customized, as well as switched on and off

Programmable high/low set-points for go/no-go testing:
with color-coded LED display: underrun (-NG) – good (OK) – exceeding (+NG) and relay outputs

Storage of 1000 values, which can be recalled:
– on the display
– data transfer to a PC
– for printing with report

Output signal:
– RS-232 for connecting to a PC
– USB
– analog ±2 V DC

Display of Force gauge ZTA can be reversed for inverted use; e. g. on vertical test stand

»Zero Set« to zero the gauge in all operating positions

Alarm indication in display and output signal in case of overload for test stands of series MX, MX2 and EMX

Force gauge ZTA with user switchable units: N, kgf (gf) and lbf (ozf)

Selectable language (English, German, Italian, French, Spanish, Chinese, Japanese, Korean)

Manufacturers inspection certificate is included

Special features in comparison to standard unit ZTS

In combination with a test stand with linear scale, force-displacement measurements are possible.

Readings can be transferred from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)

2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording

Indication of two peak values per measurement.

Standard Features

• Force gauge ZTA for exact measuring with an accuracy of ±0.2 % full scale
• Approx. 200 % overload protection
• For hand-held use or mounting on test stand
• Ergonomically-designed, rugged die-cast aluminium housing
• Non-slip rubber grip
• Operates on rechargeable battery and/or AC adapter
• Full set of accessories included
