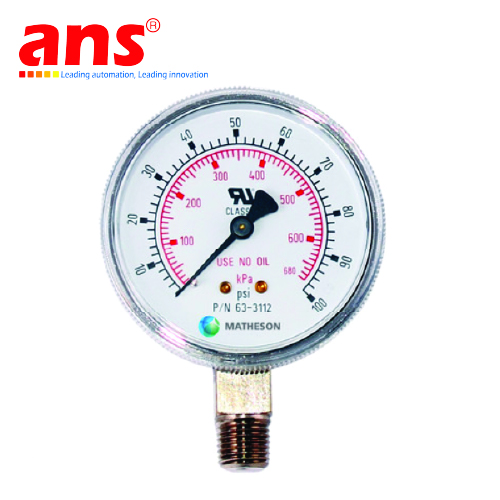

Pressure Gauge 63-3133 MATHESON Vietnam
Price: Contact
Brand: MATHESON Vietnam
Category: Gauges
Supplier: ansvietnam
Origin: USA
0911472255Pressure Gauge 63-3133 MATHESON Vietnam
Specifications
• Dial Size: 2-1/2"
• Pressure Connection: 1/4" MNPT - Lower Mount
• Bourdon Tube Material: Copper alloy
• Pressure Connection Material: Copper alloy
• Case: Polished brass
• Window: Twist-lock clear polycarbonate
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Accuracy Class: +/- 3/2/3% of span (ASME B40.100 Grade B)
Working pressure
Steady: 3/4 of full scale value
Fluctuating: 2/3 of full scale value
Short time: full scale value
Ordering Information
| Part Number | ALT-P/N | Model | Range |
| SEQ633106 | MGAG-0027-BA | 63-3106 | 0-15 psig (acetylene) |
| SEQ633115 | MGAG-0030-BA | 63-3115 | 0-15 psig |
| SEQ633131 | MGAG-0033-BA | 63-3131 | 0-30 psig |
| SEQ633104 | MGAG-0026-BA | 63-3104 | -30"-0-30 psig |
| SEQ633161 | MGAG-0038-BA | 63-3161 | 0-60 psig |
| SEQ633109 | MGAG-0097-BA | 63-3109 | -30"-0-60 psig |
| SEQ633112 | MGAG-0028-BA | 63-3112 | 0-100 psig |
| SEQ633112A | MGAG-0606-BA | 63-3112A | -30"-0-100 psig |
| SEQ633122 | MGAG-0031-BA | 63-3122 | 0-200psig |
| SEQ633107 | MGAG-0098-BA | 63-3107 | -30"-0-200 psig |
| SEQ633142 | MGAG-0035-BA | 63-3142 | 0-400 psig |
| SEQ633113 | MGAG-0029-BA | 63-3113 | 0-1000 psig |
| SEQ633123 | MGAG-0032-BA | 63-3123 | 0-2000 psig |
| SEQ633133 | MGAG-0034-BA | 63-3133 | 0-3000 psig |
| SEQ633143 | MGAG-0036-BA | 63-3143 | 0-4000 psig |
| SEQ633153 | MGAG-0037-BA | 63-3153 | 0-5000 psig |
| SEQ633175 | MGAG-0039-BA | 63-3175 | 0-7500 psig |
