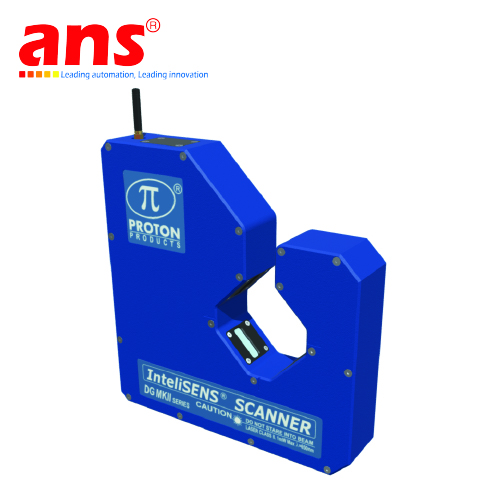

Diameter Gauge DGk2030-i4 00057MC001 Proton Vietnam

Diameter Gauge

The InteliSENS® Dual Axis Diameter Gauge does much more than measure diameter. LED and CCD Technology coupled with our specially designed Optics provide Super Fast diameter and position measurement. This technology has no moving parts, no wear, no drift. The extremely powerful FPGA processor used in the DGK Diameter Gauges enables Super Fast Measurements. 5,000 scans per second per axis in the standard configuration which can be increased to 10,000 scans per second per axis. Additional options add functionality to measure, control, and alarm & report on product quality.

Measurement Technology

A novel LED light and optical lens design produces a broad light beam across the measured part surface. The CCD receiver module is scanned up to 10,000 times per second per axis, to measure diameter and position. With no moving parts, a reliable, accurate and repeatable measurement is achieved
