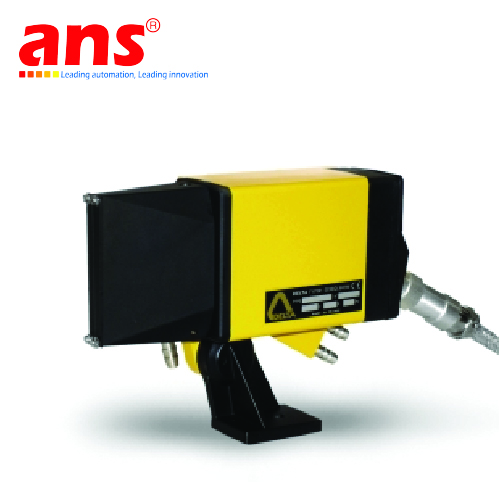

Delta Stato-Sonde Z3 – Static Hot Metal Detector for Extreme Industrial Environments

The Stato-Sonde Z3 by Delta Sensor is a static hot metal detector engineered to safely and reliably detect hot metal objects starting from ≈ 400 °C (750 °F). Designed to withstand the harsh conditions found in steel mills, foundries, and hot-metal processing environments, this sensor delivers stable detection performance with minimal maintenance required.

🔧 Key Features

• High minimum detection temperature: Detects hot metal items at temperatures from ~ 400 °C upward.

• Viewing / optical field: Vertical field of view ~ 15° and horizontal ~ 4°, allowing reliable detection even when the target deviates somewhat from the center.

• Robust housing: Heavy-duty aluminum case with protective hood and, optionally, cooling jacket for use in high ambient temperature environments.

• Air purging and lens protection: Front protective hood with shutter, air inlet to keep debris off the lens; hinged front for easy cleaning.

• External sensitivity adjustment & test function: Sensitivity can be conveniently adjusted from outside the device; “TEST” function allows simulation of hot metal detection from the control room.

• LED indicators: Multicolor LED status display (power, detection, test) to allow quick visual feedback.

• Optional cooling plate: Used when ambient temperature exceeds ~ 75 °C; helps extend service life of the detector.

• Modular design: Facilitates maintenance, replacement, or upgrades.

⚙️ Technical Specifications Snapshot

• Detection threshold: min ~ 400 °C / 750 °F

• Viewing angle: ~15° vertical × ~4° horizontal

• Power options: Models available with 24 VDC, or AC (often 110-240VAC) input depending on version.

• Signal output: Relay output or solid-state relay / opto-relay options for switching.

• Ambient working temperature: Up to ~ 75 °C in many installations; with optional cooling jacket it can operate under higher ambient conditions.

• Ingress protection: IP67 aluminum housing to protect against dust and moisture.

• Cable / connector options: Silicone cable with protective steel braid; optional connector; cable lengths of ~2 m or longer as needed.
