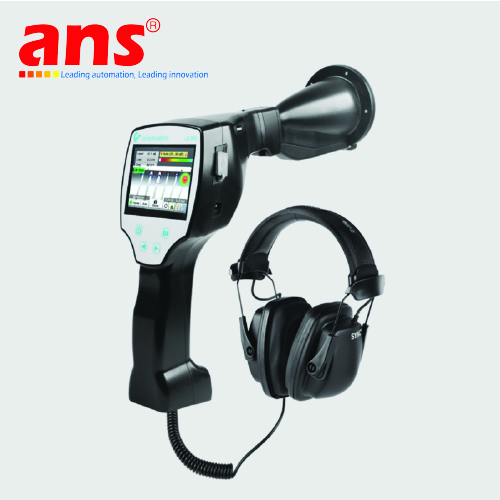

Ultrasound Camera LD 510 06010206 0001 CS-Instrument Vietnam

Around 10% of total industrial electricity consumption is used for compressed air generation in industrialized countries, and in Germany the figure is as high as 14%. Leakages are the main factor for energy losses and most compressed air systems show losses in the range of about 20 % to 40 %, in bad systems even more than 60%. Fixing compressed air leaks is the most effective action for reducing the energy consumption.

The Ultrasound Camera will let you find compressed air leaks much faster than traditional leak detectors and makes to process much more intuitive and easier. This is how it works: The Ultrasound Camera uses 30 digital mems, an FPGA, and a processor for calculating the ultrasound map. The used algorithm is called beam forming. The LD 500 displays the overlayed image on the display to the user automatically.

Finding leaks is a recurring marathon and not a single sprint. Due to its light weight (600 grams) and long battery life (7 hours) the LD 500/ LD 510 was made for finding compressed air leaks the whole day. Also, the holster will support the user because the wight must not be carried the whole time and gives him/ her an additional free hand if needed.
