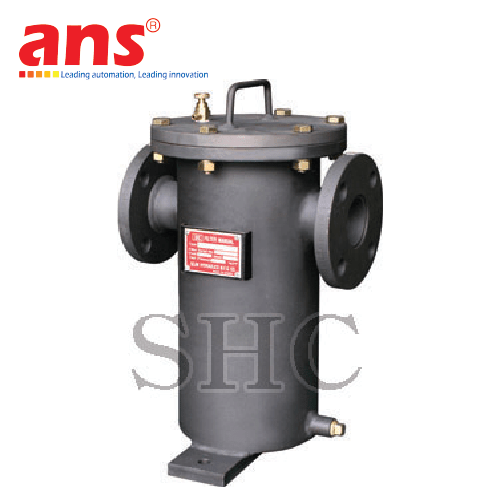

Line Filter SJ-18-100A Sejin hydraulics Vietnam

Specifications

• Cover & Body Material: Carbon steel (welded type)

• Filter Screen: Stainless steel

• Maximum Working Pressure: 7 kgf/cm²

• Inlet/Outlet Flange: JIS standard, 10 kgf/cm²

• Standard Filtration Level: 60 mesh

Options

• Optional magnetic filter available

• Filtration levels available: 80, 100, 150, 200, 250 mesh

• Fully stainless steel (SUS) version available

Key Features

• Designed for horizontal pipeline installation

• Effectively removes impurities from various piping systems

• Large filtration area minimizes pressure loss caused by fluid resistance

• Equipped with KS/JIS standard flanges (10 kgf/cm²) for easy pipeline connection

• Simple cleaning and filter replacement process

• Standard filtration level is 60 mesh, with multiple mesh size options available

• Materials manufactured according to KS, JIS, or ANSI specifications
