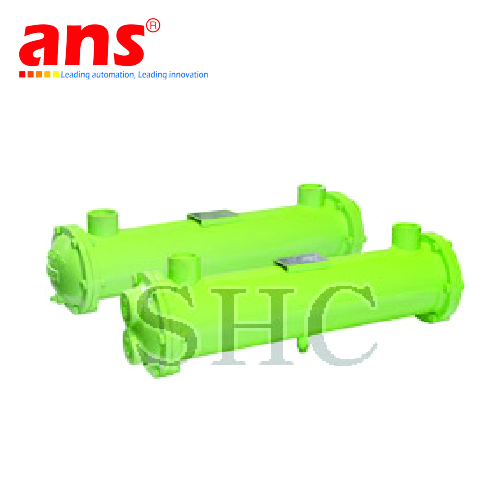

Oil Cooler SHC-600-F Sejin hydraulics Vietnam

Specifications & Features

• Maximum Working Pressure: 7 bar

• Shell & Cover Material: Steel / FC

• Tube Material: C1220T

Key Features:

• One of the most widely used oil coolers, applied across multiple industries.

• Available oil-side connections:

  • Socket Type: SHC-※-S

  • Flange Type: SHC-※-F

• Offers excellent cooling performance combined with high durability.

• Simple structure and cost-effective design, providing an economical solution.

• Available in a wide range of sizes, allowing users to select the most suitable option.

• Adjustable mounting brackets for easy installation.

• Thorough quality control and inspection system ensures maximum product reliability.

• Note: Not suitable for chemical or food cooling applications.

Optional Features:

• Flanged connection on the water cover (available upon request).

• Cast brass water cover available for seawater applications.

• Removable tube bundle for easy maintenance.

• 4-pass type available.

Special Types:

• NS Type (for general seawater use):

  • Constructed with copper-nickel tubes and stainless-steel tube sheets.

  • Provides higher corrosion resistance compared to standard models when used in seawater environments.

• AS Type (all stainless steel):

  • Entirely made of stainless steel STS316L components.

  • Delivers superior corrosion resistance, ideal for marine use, seawater environments, or other special applications.

  • Tube & tube sheet can be substituted with copper-nickel upon request.
