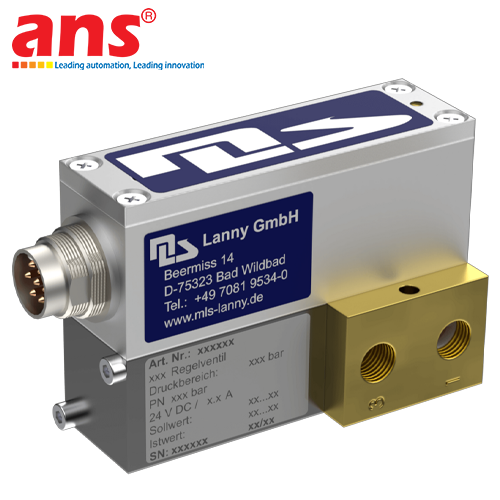

The MLS Lanny SERIES E Laser Proportional Control Valve (Laser-application Proportional Control Valve) represents a premium-grade, ultra-high dynamic medium management instrument engineered and manufactured by MLS Lanny Mess- und Regeltechnik GmbH (Germany). This specialized unit is rigorously optimized to satisfy the demanding, volatile parameters characteristic of multi-kilowatt industrial fiber laser cutting operations. In modern high-power laser systems, controlling the active pressure and instantaneous volumetric flow of assist gases—predominantly high-pressure Nitrogen (N2) for clean oxide-free cuts and Oxygen (O2) for exothermic thermal reactions—is the absolute technical parameter that dictates edge surface roughness, dross/burr ejection efficiency, and localized processing velocities. Any minor pressure deviation along the supply pipeline can permanently distort the laser focal reaction or cause severe cutting failure lines on heavy stainless steel or carbon steel plates. The Series E Laser valve neutralizes this technical manufacturing vulnerability, deploying a robust electromagnetic actuator coupled with an advanced next-generation digital processing board to resolve adjustment commands within fractions of a millisecond.

The structural architecture of the valve block is precisely CNC-machined from advanced high-grade stainless steel or chemical-anodized rigid alloys, rated to safely withstand intense primary inlet pressures peaking up to 50 bar or 60 bar – the baseline threshold necessary for intensive high-pressure Nitrogen gas-assist routines. Beyond its exceptional physical pressure containment capabilities, the Series E Laser undergoes strict cleanliness processing and inspection loops inside designated cleanrooms to guarantee total eradication of organic hydrocarbon compounds, satisfying mandatory "Oxygen-clean" safety codes (oil and grease-free parameters) to intercept any localized ignition risk under dense thermal loads. The instrument provides seamless native interfacing with modern laser machine CNC kernels, supporting legacy analog networks (0-10V, 4-20mA tracking loops) as well as cutting-edge high-speed fieldbus/Ethernet gateways including Profibus, Profinet, and EtherCAT. Engineered with an optimized internal flow geometry that constrains mechanical hysteresis below 1% FS, the MLS Lanny Series E Laser acts as the definitive roadmap for global OEM laser system integrators to secure uncompromised process reliability, minimize gas overhead consumption, and maximize nozzle lifespan parameters.

• Manufacturer: MLS Lanny (MLS Lanny Mess- und Regeltechnik GmbH)
• Country of Origin: Germany
• Product Category: High-Performance Proportional Control Valve for Industrial Laser Systems
• Model Designation: SERIES E Laser (Laser-application)
• Core Technical Function: Linear pressure regulation of process assist gases (N2, O2, Compressed Air) for Fiber Laser machinery
• Compatible Operating Media: High-pressure Nitrogen, Oxygen (Certified Oxygen-clean specifications), Compressed Air, Argon
• Pressure Range Capacities:
  - Input pressure maximum (Input max): 50 bar / 60 bar (Depending on specified mechanical build)
  - Controlled output pressure scale: 0...10 bar, 0...20 bar, 0...40 bar, 0...50 bar
• Command Set-point Input Interface: Standard industrial analog 0...10 VDC, 4...20 mA, or high-speed fieldbus digital interfaces
• Supported Communication Protocols: Profibus, Profinet, EtherCAT, IO-Link, CAN bus network configurations
• Electromechanical Hysteresis Envelope: < 1% FS (Full Scale)
• System Linearity Error Band: < 1% FS
• Measurement Repeatability Class: < 1% FS
• Dynamic Response Latency: Ultra-rapid reaction loops executing positional shifts within several milliseconds (ms)
• Cleanliness Specification: Processed and packaged completely oil and grease-free, optimized for high-pressure industrial Oxygen networks (Oxygen clean compliant)
• Operating Auxiliary Power Input: 24 V DC stabilized industrial line (Engineered for high-frequency PWM switching stability)
• Mechanical Connection Ports: Standard G1/4 female thread or specialized manifold block assemblies for laser head layouts
• Environmental Protection Rating: Certified up to IP65 configurations (Depending on electrical interface termination arrays)
• Safety & Quality Compliance: CE marked, fully compliant with rigorous European high-pressure gas instrumentation design directives
