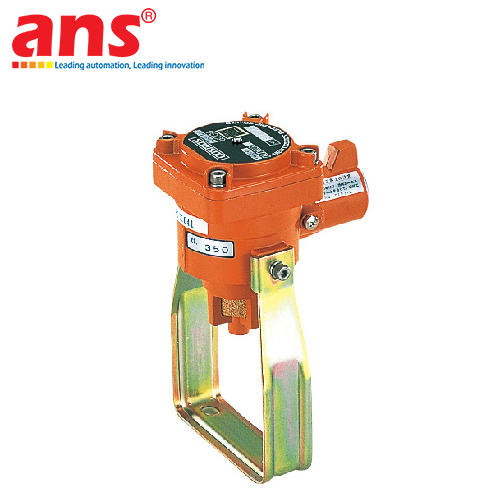

NEW COSMOS ELECTRIC EP-2A-C1C10 INDUSTRIAL GAS LEAK DETECTOR ASSEMBLY (PART CODE: Y4550-C1C10)

DEEP PRODUCT OVERVIEW & HAZARDOUS INDUSTRIAL ALIGNMENT
The New Cosmos Electric EP-2A-C1C10 (Order Part Code: Y4550-C1C10) is a heavy-duty industrial gas leak detection and measurement assembly, engineered and manufactured 100% in Japan by the global gas-sensing pioneer New Cosmos Electric Co., Ltd. Acting as an uncompromised continuous monitoring asset anchored directly on the factory floor, this premium device features a rugged, explosion-proof construction designed for safe operation inside harsh processing zones with volatile ignition hazards. The cornerstone technical component driving the performance of this assembly is its premium integrated PD-2DC Sensor Head. The seamless coordination between its optimized gas diffusion chamber and advanced microelectronic signal conditioning circuit positions the EP-2A-C1C10 as an irreplaceable front-line shield, safeguarding human life and high-value facility assets against combustible gas failures common to heavy boiler rooms, natural gas transfer hubs, petrochemical distribution lines, and dồi dào organic biogas storage yards.

PREMIUM CATALYTIC COMBUSTION PRINCIPLE OF THE PD-2DC SENSOR HEAD
The optical and electrical core of the assembly implements the premium PD-2DC sensing element, running strictly on the Catalytic Combustion Principle—one of the most stable, trusted, and field-proven gas detection methods in industrial safety history:
- Inside the sensor head, a microscopic platinum wire coil element (coated in a specialized technical catalyst formulation) is continuously warmed to a controlled temperature via a precise nominal electrical current rail. The instant the target combustible gas—explicitly Methane (CH4)—leaks and diffuses through the fine protective sinter filter into the measuring chamber, a flameless chemical oxidation reaction triggers directly on the catalyst surface.
- This exothermic oxidation releases thermal energy that increases the temperature of the internal platinum wire, inducing a deterministic, linear change in its electrical resistance profile. The integrated balanced bridge microcircuitry captures this electrical variation down to micro-volt scales, instantly evaluating and converting the deviation into a highly accurate percentage reading of real-world gas accumulation with rapid response times and near-zero tolerance drift.

COMPREHENSIVE 0-100% LEL SCALE & HIGH-SELECTIVITY METHANE (CH4) PROFILING
- Technical Metric of 0-100% LEL Range: The acronym LEL (Lower Explosive Limit) defines the minimum concentration of a combustible gas mixed in ambient air required to ignite and sustain a flash explosion when exposed to a thermal source or electrical arc. For Methane (CH4), a full-scale range of 0% to 100% LEL tracks gas accumulation from absolute safety (0%) up to the exact threshold where an explosion becomes physically possible (100% LEL). To lock down maximum safety margins, the system is engineered to activate visual strobe tower alarms or trip automatic gas shut-off emergency valves at micro-fractions of the LEL scale (typically 10% or 25% LEL). This grants control technicians an expansive buffer time to suppress the leak long before nồng độ approaches actual explosive levels.
- High-Selectivity Methane (CH4) Calibration: The device is factory-calibrated by New Cosmos Electric specifically for the molecular signature of Methane (CH4)—the primary component of Compressed/Liquefied Natural Gas (CNG/LNG) and high-density Biogas grids. This targeted calibration provides the PD-2DC sensor head with maximum sensitivity toward CH4 molecules while ignoring background volatile organic compounds (VOCs) or ambient vapors, mitigating the risk of false alarms.

CENTRALIZED NETWORK INTEGRATION & JAPANESE HEAVY INDUSTRIAL BUILD
The EP-2A-C1C10 field assembly operates on a centralized safety network blueprint. Rather than sounding isolated localized horn alerts on the plant floor, it continuously transmits steady analog voltage or current loops back to central control systems positioned in the main monitoring room (such as the New Cosmos NV-120 Series, NV-100, or multi-channel synchronized monitoring systems). This allows safety managers to track multi-node plant security in real-time. The outer shell of the assembly is cast from a dense, heavy-duty explosion-proof alloy that complies with stringent Japanese safety standards, shrugging off severe physical impacts, structural machinery shocks, and aggressive chemical erosion common to heavy manufacturing plants.

MEASUREMENT CAPACITY & PERFORMANCE DATA
- Equipment Manufacturer: New Cosmos Electric Co., Ltd. (Japan)
- Device Assembly Model: EP-2A-C1C10
- Factory Product Code (Part Code): Y4550-C1C10
- Integrated Sensor Head Model: PD-2DC (Premium sensing block)
- Target Combustible Gas: Methane (CH4) / Main component of CNG, LNG, and Biogas grids
- Primary Sensing Principle: Flameless Catalytic Combustion Technology
- Full Scale Measuring Range: 0 ... 100% LEL (Lower Explosive Limit percentage scale)
- Signal Response Profile: Rapid-response data loop triggered upon Methane molecular diffusion

ELECTRICAL DATA & SYSTEM PAIRING
- Operating Supply Voltage: Synchronized and driven straight via the power rails of the paired central control rack
- Signal Output Type: Industrial analog signaling loop engineered for long-distance noise-immune data transfer
- Compatible Control Infrastructure: Connects seamlessly into New Cosmos Electric centralized control panels and alarm indicators (Including the NV-120 Series, NV-100 Series, and custom multi-channel safe zone panel racks).

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Device Configuration: Fixed-type industrial gas leak detector field unit assembly
- Housing Shell Substrate: Heavy-walled industrial alloy enclosure fitted with certified explosion-proof structural integrity meeting Japanese industrial safety indices
- Mechanical Production Origin: 100% Manufactured in Japan
- Physical Mounting Assembly: Engineered with a heavy structural mounting plate for rigid bolt-down fastening onto factory walls, overhead structural framing, or near boiler gas line junctions.

ENVIRONMENTAL RATING & COMPLIANCE ALIGNMENT
- Explosion Protection Classification: Certified explosion-proof/flameproof design rated for continuous deployment inside explosive hazardous zones
- Structural Shell Durability: Fully sealed against particle grime ingress; highly resilient against continuous machinery frame vibrations stemming from large boiler compressors and resistant to mild industrial airborne erosion
- Master Application Profiles: High-reliability front-line defensive alert asset for industrial Boiler plants, natural gas processing hubs, bio-energy storage depots, and commercial facilities central gas vaults.
