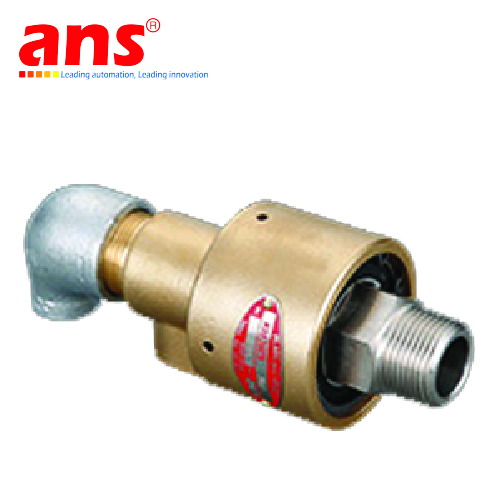

Rotary Joint RXE 2180 Showa Giken Vietnam

Product Highlights

• The floating washer is designed to ensure optimum contact with the rotor sealing surface, providing efficient, stable and durable sealing during operation.
• Low torque reduces the need for a housing anti-rotation mechanism. In most applications, no additional fixing is required (except for the RXK series).
• A stainless steel material option is available for the RXE and RXH series. All metal components of this version are made of stainless steel, enhancing corrosion resistance in harsh environments.
• Compatibility with dry gas is available upon request, meeting a wide range of industrial needs.

Specifications

Working medium: Water / Oil

Maximum working pressure:
• Size 8A – 25A: 2.25 MPa (326 psi)
• Size 32A – 40A: 1.67 MPa (242 psi)
• Size 50A – 80A: 1.18 MPa (171 psi)

Maximum operating temperature: 100°C (212°F)

Maximum rotation speed:
• Size 8A – 25A: 3500 rpm
• Size 32A – 40A: 2000 rpm
• Size 50A – 80A: 750 rpm
