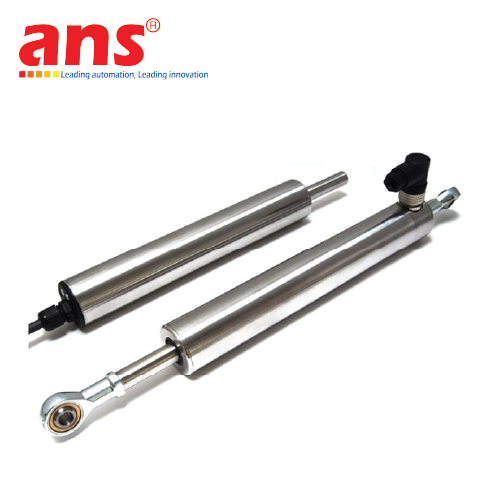

0911472255Sensor for gas X111.600AI1000NSUZ375 Positek Vietnam
The Intrinsically Safe X111 is ATEX and IECEx approved for use in potentially explosive gas/vapour atmospheres. This heavy-duty version of the X101 sensor with a stronger 12.6mm push rod, recommended for applications where vibration is an issue or there is a need for longer travel sensors, mounted horizontally, and supported between rod eyes. It remains an affordable, durable, high-accuracy position sensor designed for industrial and scientific feedback applications.
- Highly compact and space-efficient, being responsive along almost its entire length
- Linear output proportional to displacement
- Output calibrated to the travel required by the customer, from 0-5mm to 0-800mm and with full EMC protection built in
- Very robust, the body and push rod being made of stainless steel for long service life and environmental resistance
- Overall performance, repeatability and stability are outstanding over a wide temperature range
- The sensor is easy to install with mounting options including M8 rod eye bearings and body clamps
- The push rod can be supplied free or captive, with female M8 thread, an M8 rod eye, or dome end
- Captive push rods can be sprung loaded, in either direction, on sensors up to 300mm of travel
- Environmental sealing is to IP65 or IP67, depending on selected cable or connector options
Positek intrinsically safe sensors are designed to be used with a galvanically isolated amplifier . Approved galvanic isolation amplifiers (X005) are available from Positek; there is a choice of 0.5-9.5V or 4-20mA transmission outputs.
