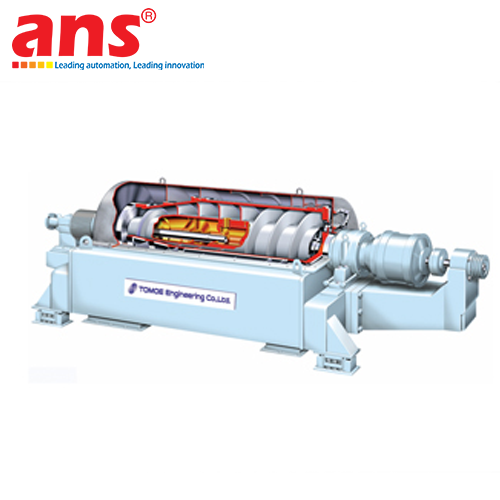

The Tomoe Engineering Model TA450 Decanter Centrifuge is a high-capacity, heavy-duty continuous solid-liquid separation system engineered and manufactured by Tomoe Engineering Co., Ltd. (Japan). Standardized with a 450 mm nominal bowl diameter, the Model TA450 delivers massive throughput capabilities along with exceptional centrate clarity and cake dryness, addressing challenging industrial separation processes across chemical manufacturing, petrochemicals, food and beverage processing, mining, pharmaceuticals, and large-scale industrial wastewater treatment facilities worldwide.

The operating architecture of the Tomoe TA450 is based on the synchronized rotation of a solid cylindrical-conical bowl and an internal scroll conveyor rotating in the same direction at a precisely controlled differential speed via a high-torque planetary gearbox. Slurry is continuously introduced through a central feed distribution pipe into the separation chamber. Driven by a high centrifugal field of several thousand Gs, heavier solid particles are immediately compacted against the inner rotating bowl wall. The internal screw conveyor continuously plows and advances the compacted solids cake up the conical beach section for thorough mechanical dewatering prior to discharge through solid discharge ports, while clarified liquid overflows across precision weir plates at the opposite end.

A major operational hallmark of the Tomoe TA450 is its robust mechanical construction and comprehensive wear-protection technology. Critical wear zones—including conveyor scroll flight peripheries, feed discharge ports, and cake ejection nozzles—are shielded with sintered Tungsten Carbide tiles or specialized ceramic inserts, guaranteeing prolonged continuous uptime when processing abrasive slurries such as mineral tailings, PVC polymers, or inorganic grits. All product-wetted components are manufactured from premium Austenitic SUS316L Stainless Steel or high-strength Duplex Stainless Steel (SUS329J4L / SAF 2205) for superior resistance against chemical acids, alkalis, and aggressive chloride solutions.

The Tomoe Engineering Model TA450 is powered by an intelligent Dual Variable Frequency Drive (Dual VFD) inverter system, which dynamically measures torque demands and modulates scroll differential speed in real-time to maintain maximum cake dryness despite fluctuations in feed solids concentration. Furthermore, its completely sealed, vapor-tight hermetic housing design prevents volatile solvent vapors, toxic fumes, and unpleasant odors from escaping into the plant environment, fulfilling strict industrial occupational safety and environmental emission directives.

• Manufacturer: Tomoe Engineering Co., Ltd. (Japan)
• Product Category: Industrial Decanter Centrifuge
• Model: TA450
• Operating Principle: Continuous solid-liquid centrifugal sedimentation separation
• Nominal Bowl Diameter: 450 mm
• Length-to-Diameter (L/D) Ratio: 3.8:1 – 4.4:1 (engineered for optimal clarification and cake dryness)
• Maximum Bowl Operating Speed: 3,000 – 3,800 RPM (slurry-dependent)
• Maximum Centrifugal G-Force: Up to 2,800 – 3,600 G
• Wear Protection Architecture:
  - Conveyor Scroll Flights: Tungsten Carbide tiles / Sintered hard-facing overlay
  - Feed Ports & Solids Discharge Outlets: Replaceable sintered Tungsten Carbide / Ceramic bushings
• Wetted Materials of Construction: SUS316L Stainless Steel / Duplex Stainless Steel (SUS329J4L / SAF 2205)
• Differential Speed Control: Heavy-duty High-Torque Planetary / Cycloidal Gearbox
• Drive System: Dual VFD Inverter Drive system with automatic torque monitoring and differential adjustment
• Main Drive Motor: 37 kW – 55 kW (slurry viscosity dependent)
• Secondary Back-Drive Motor: 11 kW – 18.5 kW
• Lubrication System: Automatic grease lubrication or forced circulating oil lubrication system with integrated cooler
• Housing Sealing Design: Standard vapor-tight or Hermetic sealed structure preventing toxic gas/solvent odor leakage
• Integrated Safety Diagnostics: Multi-axis vibration monitoring sensors, bearing temperature RTDs, and overload torque protection
• Automation Control: Industrial PLC (Siemens / Mitsubishi) with multilingual touchscreen HMI interface
• Quality & Manufacturing Standards: ISO 9001, CE Machinery Directive, JIS Standards (100% Made in Japan)
