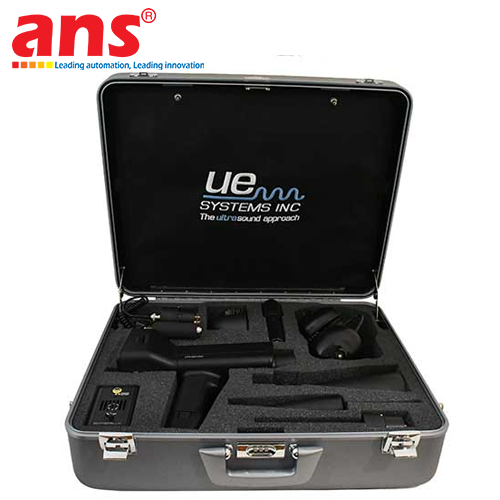

The Ultraprobe 10,000 (UP10000) Digital Ultrasonic Inspection System, engineered and manufactured by UE Systems Inc. (USA), is an industry-standard, high-precision digital ultrasound instrument widely recognized by reliability engineers, energy management specialists, and maintenance professionals worldwide for condition monitoring and predictive maintenance (PdM).

The Ultraprobe 10,000 sets a performance benchmark by combining advanced digital signal processing with effortless, one-button on-board sound recording capability. The instrument heterodynes imperceptible high-frequency ultrasonic signals generated by turbulent flow, mechanical friction, or electrical ionization into clearly audible audio frequencies heard through deluxe noise-attenuating headphones, while displaying calibrated Decibel (dB) levels and a 16-segment dynamic bar graph on its high-contrast display.

Key Engineering Features & Operational Advantages:
- One-Button On-Board Sound Recording: The signature feature of the UP10000 is its integrated capability to record calibrated, uncompressed audio files (.WAV) directly to on-board memory or an external memory card with a single click of the navigation wheel. These audio recordings can be played back immediately through headphones or exported to PC software for advanced spectral diagnostic analysis.
- Wide-Range Precision Frequency Tuning (20 kHz to 100 kHz): Features precision frequency selection adjustable in 1 kHz increments. This permits inspectors to filter out intrusive low-frequency plant background noise and isolate the exact ultrasonic frequency signature of mechanical defects, subtle gas leaks, or high-voltage discharge faults.
- Ergonomic Pistol-Grip Industrial Construction: Built with a rugged, extruded aluminum and high-impact ABS chassis designed to withstand harsh industrial environments. The intuitive "Spin and Click" single-control wheel enables users to navigate menus, adjust sensitivity, change inspection routes, and store readings with one hand, even while wearing heavy work gloves.
- Comprehensive Data Management & Route-Based Inspection: Capable of storing thousands of data test points and audio samples. Plant managers can configure structured inspection routes using Ultratrend DMS software on a computer and upload them directly to the UP10000, guiding technicians systematically through factory asset paths.
- Powerful Integrated Software Suite:
  + Ultratrend DMS (Data Management System): Manages asset databases, tracks historical bearing condition trends, computes compressed air leakage loss into monetary currency values, and produces ISO 50001 compliant energy audit reports.
  + Spectralyzer Software: Provides advanced Fast Fourier Transform (FFT) frequency spectrum and time-series waveform analysis, converting acoustic recordings into visual graphs to verify mechanical looseness, cracked bearing races, valve blow-by, or distinct electrical discharge signatures (Corona vs. Arcing).

Typical Industrial Applications:
- Compressed Air, Gas & Vacuum Leak Detection: Rapidly locates pressure and vacuum leaks from safe distances, calculating flow loss (CFM) and equivalent electrical energy expenditure.
- Mechanical Bearing Condition Monitoring & Precision Lubrication: Detects incipient subsurface bearing faults (Stages 1 and 2 of failure) well before vibration or heat signatures appear; provides acoustic feedback to eliminate both under-lubrication and over-lubrication.
- Steam Trap & Pipeline Valve Inspection: Reliably determines whether steam traps are cycling normally, leaking valuable live steam, or stuck closed (causing hazardous condensate backup); verifies shutoff integrity in isolation valves.
- High-Voltage Electrical Discharge Testing: Detects early-stage ionization phenomena such as corona discharge, surface tracking, and destructive arcing within medium-to-high voltage switchgear cabinets, dry-type transformers, and outdoor substation insulators.

• Manufacturer: UE Systems (UE Systems Inc.)
• Country of Origin: USA
• Product Line: Ultraprobe 10,000 Digital Ultrasonic Inspection System
• Model Designation: Ultraprobe 10,000 (UP10000)
• Frequency Detection Range: 20 kHz to 100 kHz (Tunable in 1 kHz increments)
• Display Interface: High-contrast backlit LCD display
• Displayed Information: Calibrated Decibel (dB) reading, 16-segment dynamic bar graph, operating frequency, battery status, record number, and route data
• Signal Processing Circuitry: Heterodyne frequency conversion circuitry with 16-bit A/D conversion
• Response Time: Less than 10 milliseconds
• Sensitivity: Detects a 0.005" (0.127 mm) diameter leak at 5 PSI (0.34 bar) at a distance of 50 ft (15 m)
• Sound Recording Capability: On-board one-touch recording of calibrated .WAV audio files
• Data Storage Capacity: Internal non-volatile memory and expansion memory card slots storing thousands of data points and audio records
• User Control Interface: Ergonomic "Spin and Click" single-dial navigation system
• PC Connectivity: USB interface for direct bi-directional synchronization with PC
• Compatible Software: Ultratrend DMS (Data Management System) and Spectralyzer spectral analysis software
• Audio Output: 1/4" heavy-duty jack supporting deluxe industrial noise-attenuating headphones
• Sensor Module Compatibility:
  - Trisonic Scanning Module (airborne leaks, electrical discharge)
  - Stethoscope Contact Probe (bearings, steam traps, valves, mechanical components)
  - Long Range Module - LRM (optional parabolic lens for remote overhead inspections)
  - Ultrasonic Parabolic Dish (optional long-distance substation scanning)
• Power Supply: High-capacity rechargeable, removable Lithium-Ion battery pack
• Continuous Operating Time: 4 to 6 hours of continuous testing on a single charge
• Operating Ambient Temperature Range: 0°C to 50°C (32°F to 122°F)
• Enclosure Material: Heavy-duty extruded aluminum housing with shock-resistant ABS components
• Handheld Unit Net Weight: Approximately 2.15 lbs (1.0 kg).
