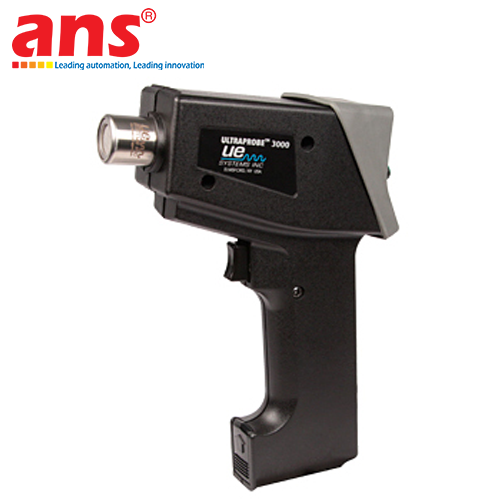

The Ultraprobe 3,000 (UP3000) Digital Ultrasonic Inspection System, engineered and manufactured by UE Systems Inc. (USA), is a lightweight, versatile, and highly cost-effective digital ultrasonic leak detector and condition monitoring tool designed to assist industrial facilities in reducing energy waste, maximizing production uptime, and lowering operational overhead.

Weighing just 1 lb (0.45 kg) with an ergonomic pistol-grip chassis that fits comfortably in the palm of your hand, the Ultraprobe 3,000 eliminates the bulk associated with traditional testing instruments. Utilizing proprietary digital heterodyne signal processing circuitry combined with surface-mount SMD technology and temperature compensation, the instrument translates inaudible high-frequency ultrasound (generated by turbulent leak flow, mechanical friction, or electrical ionization) into clear, audible audio signals heard through deluxe noise-attenuating headphones, while simultaneously presenting calibrated Decibel (dB) amplitudes on its high-contrast display.

Key Engineering Features & Operational Advantages:
- Dedicated 35 - 45 kHz Frequency Response (Centered at 40 kHz): Engineered specifically around the peak sensitivity response of ultrasonic transducers (40 kHz), fully conforming to ASTM E1002 standards for leak detection. This optimized fixed-frequency envelope acts as a physical acoustic filter, screening out noisy, low-frequency factory ambient sounds (such as motors, presses, and compressors) and allowing technicians to pinpoint subtle leaks without manual frequency tuning.
- Intuitive "Spin and Click" Operation: Adjusting sensitivity, navigating setup menus, storing inspection records, and reviewing stored readings are all controlled through a single ergonomic rotary dial and integrated push button. This permits effortless, one-handed operation even when wearing heavy industrial safety gloves in challenging environments.
- High-Contrast 128x64 Graphic Display with Backlight: Presents clear, real-time numeric Decibel (dB) readouts, a dynamic 16-segment bar graph (each segment representing 3 dB of signal change), current sensitivity settings, storage record numbers, and battery charge status.
- Integrated On-Board Data Logging (400 Memory Locations): Accommodates up to 400 test data points. Inspectors can follow structured plant-wide inspection routes, logging and overwriting test points directly on-site without manual paperwork.
- Mini-USB PC Interface & Software Reporting: Connects directly to a computer via a mini-USB I/O cable to synchronize data with UE Systems' Ultratrend DMS (Data Management System) software and the Leak Survey Report application. The software automatically computes compressed air CFM losses into direct monetary values, streamlining energy audits conforming to ISO 50001 standards.
- Interchangeable Plug-In Sensor Modules:
  + Trisonic Scanning Module: Optimally configured for capturing airborne ultrasound (compressed air/gas leaks, vacuum leaks, and electrical arcing).
  + Stethoscope Contact Module: Functions as a precision acoustic waveguide to transmit structure-borne ultrasound directly from internal mechanical parts (bearings, steam traps, valves, and gearboxes).
  + Optional Long Range Module (LRM-3): Doubles the standard detection range with a narrow 10-degree reception cone, ideal for scanning high-bay piping manifolds and outdoor electrical substations.

Typical Industrial Applications:
- Compressed Air, Inert Gas & Vacuum Leak Auditing: Swiftly detects and quantifies pressurized leaks from safe distances, saving thousands of dollars in compressor electrical energy costs annually.
- Steam Trap Testing & Pipeline Valve Inspection: Quickly determines whether steam traps are cycling properly, blowing live steam, or stuck closed (causing hazardous condensate water-hammer); verifies shut-off valve seat integrity.
- Bearing Condition Monitoring & Precision Lubrication: Detects early-stage mechanical friction faults (Stages 1 and 2 of failure) well before vibration sensors indicate defects; provides acoustic guidance to eliminate over-lubrication and under-lubrication.
- High-Voltage Electrical Discharge Testing: Detects early-stage ionization phenomena such as corona discharge, surface tracking, and destructive arcing in medium-to-high voltage switchgear cabinets, dry-type transformers, and overhead transmission line insulators.
- Enclosure Integrity Testing: Pairs with an ultrasonic tone generator (such as the Warble Tone Generator WTG-1) to verify weather tightness and seal integrity in marine ship hatch covers, cleanrooms, aircraft cabins, and automotive vehicles.

• Manufacturer: UE Systems (UE Systems Inc.)
• Country of Origin: USA
• Product Line: Ultraprobe 3,000 Digital Ultrasonic Inspection System
• Model Designation: Ultraprobe 3,000 (UP3000)
• Frequency Response: 35 kHz to 45 kHz (Centered at 40 kHz peak transducer response)
• Electronic Circuitry: Solid state analog and SMD digital circuitry with temperature compensation
• Response Time: Less than 10 milliseconds (< 10 ms)
• Display Panel: 128 x 64 Graphic LCD/LED with backlight
• Displayed Parameters: Calibrated Decibel (dB) readout, 16-segment dynamic bar graph, sensitivity level, storage location number, and battery status
• Data Storage Capacity: 400 internal memory locations for inspection test data
• User Control Interface: Ergonomic "Spin and Click" single-dial navigation and sensitivity control
• Outputs: Calibrated heterodyned audio output, decibel (dB) frequency output, Mini-USB data output
• PC Connectivity: Mini-USB I/O port and communication cable
• Compatible Software: Ultratrend DMS (Data Management System) and Leak Survey Reporting software
• Leak Detection Sensitivity: 1 x 10^-2 std. cc/sec to 1 x 10^-3 std. cc/sec
• Standard Compliance: Meets and exceeds ASTM E1002-2005 requirements for leak detection
• Headset Included: DHC-2HH deluxe industrial noise-attenuating headphones (over 23 dB noise reduction, hard-hat compatible)
• Standard Sensor Modules Included:
  - Trisonic Scanning Module (airborne leaks, electrical discharge)
  - Stethoscope Contact Module (bearings, steam traps, valves)
  - Rubber Focusing Probe (narrows scanning reception angle)
  - Stethoscope Extension Rod Kit (extension rods for deep mechanical reach)
  - Optional Accessories: Long Range Module (LRM-3), Telescoping Flexible Scanning Module (TFSM-3), Magnet Mount Transducer (RAS-MT)
• Power Source: Integrated rechargeable Li-Polymer battery pack
• Battery Life & Charging: Recharge time approx. 1 hour; continuous run time approx. 2 hours (typical intermittent field operation lasts 4 to 6 hours)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Enclosure Construction: Handheld pistol housing manufactured from high-impact ABS plastic
• Carrying Case: Heavy-duty Zero Halliburton aluminum industrial carrying case
• Pistol Unit Net Weight: Approximately 1.0 lb (0.45 kg)
• Complete Carrying Case Kit Weight: Approximately 11.0 lbs (4.99 kg).
