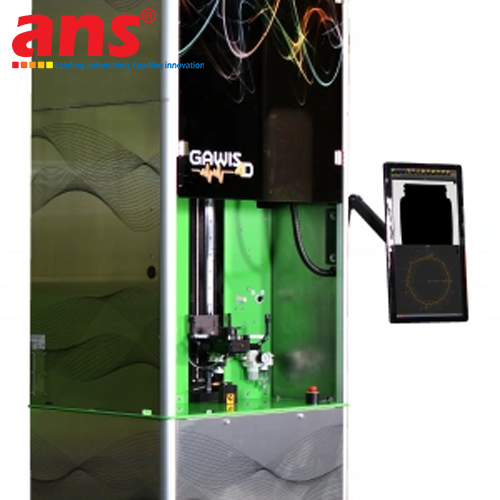

The Agr International Gawis4Glass® Automated Dimensional and Thickness Measurement System is 100% designed, engineered, and manufactured in the United States by Agr International, Inc. – the internationally acclaimed global authority in container testing, dimensional metrology, and physical strength testing instrumentation. Specifically optimized to satisfy the rigorous quality control and lightweighting demands of the commercial glass industry, Gawis4Glass® adapts Agr’s renowned Gawis 4D measurement architecture to the specialized optical transmission, reflection, and structural properties of glass bottles, jars, and pharmaceutical containers.

The foundational operational breakthrough of Gawis4Glass® is Agr's proprietary AutoJob® automated job setup technology. Historically, creating measurement routines for complex glass containers required hours of meticulous manual configuration; AutoJob® completely automates this process within seconds. When a specimen is loaded, the intelligent vision system scans the container profile, automatically identifies key finish, body, and base features, and builds a comprehensive test recipe immediately. High-resolution telecentric optical imaging eliminates perspective and optical distortion, delivering laboratory-grade measurement integrity across intricate finish dimensions (including T, E, D, H, and S elements), body diameters, body/neck lean, and base push-up depth with accuracy far exceeding typical bottle design specifications.

In addition to exterior dimensional metrology, Gawis4Glass® incorporates a high-precision non-contact thickness measurement engine. The system performs vertical and horizontal thickness distribution scans across critical regions, including the neck, shoulder, body sidewall, and heel, as well as discrete point thickness evaluations. Its precision automated rotary stage handles standard round containers as well as challenging non-round, oval, and shaped bottles with equal precision. For high-volume testing facilities, the platform supports the Gawis AF™ robotic handling option, enabling true walk-away testing with carousel-fed automated sample positioning. Featuring an intuitive large touchscreen HMI, automatic mold cavity correlation, and seamless Industry 4.0 networking, Gawis4Glass® represents the premier modern quality assurance standard for glass container manufacturing and filling facilities worldwide.

• Manufacturer: Agr International, Inc.
• Origin: 100% USA (United States)
• Product Series: High-Precision Automated Dimensional & Thickness Measurement System for Glass
• Model Designation: Gawis4Glass®
• Dimensional Optical Technology: High-resolution telecentric optical vision system eliminating perspective distortion
• Thickness Measurement Technology: High-precision non-contact optical thickness measurement module
• Automated Setup Routine: Proprietary AutoJob® automated job creation scanning and configuration in seconds
• Standard Dimensional Parameters Measured:
  - Overall container height
  - Body diameters, vertical lean / tilt, and body ovality
  - Complete finish profile elements (T, E, D, B, finish height H, and neck S dimensions)
  - Thread, radius, and angle measurements
  - Bottom push-up depth measurement
• Thickness Parameters Evaluated:
  - Vertical and horizontal material thickness distribution scans
  - Discrete point thickness measurements
  - Neck, shoulder, sidewall, and heel thickness
• Container Geometry Compatibility: Round containers and challenging non-round / shaped glass bottles and jars
• Sample Handling & Manipulation:
  - High-precision synchronized motorized rotary stage
  - Optional Gawis AF™ robotic handling system for walk-away carousel batch testing
• Operator Interface: Large industrial color touchscreen HMI with intuitive touch-and-drag navigation and configurable displays
• Data Analytics & Quality Control:
  - Documented dimensional and thickness datasets synthesized in a single operation
  - 100% automated mold cavity correlation
  - Comprehensive onboard Statistical Process Control (SPC) package supporting glass lightweighting initiatives
• Plant Connectivity: Industry 4.0 ready digital interfaces for plant-wide SCADA, MES, and enterprise network integration
• Operating Power Supply: 100 - 240 VAC, 50/60 Hz
• Applicable Industries: Commercial glass container and bottle manufacturing (beer, carbonated soft drinks, wine, spirits, food jars, mineral water, perfume/cosmetic flasks), pharmaceutical glass packaging (vials, ampoules), glass container lightweighting programs, container design R&D centers, and third-party certified packaging materials laboratories.
