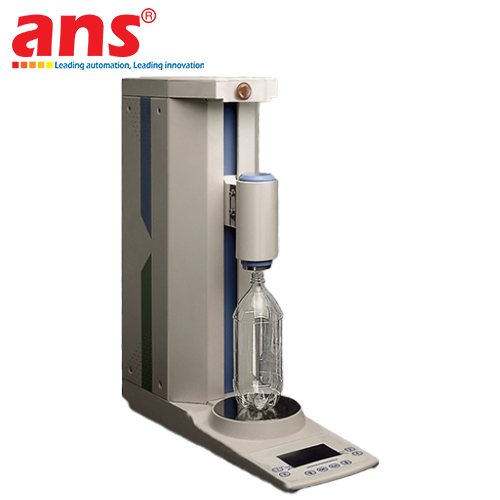

The Agr International TopLoad Tester TL2000 (System Model: C506-TOPLOAD) is 100% designed, engineered, and manufactured in the United States by Agr International, Inc. – the internationally recognized global benchmark in container inspection, dimensional metrology, and physical strength testing instrumentation. Specifically developed to deliver rapid, accurate, and repeatable vertical crush strength testing for rigid plastic containers, the TL2000 provides an agile, automated evaluation instrument optimized for both demanding quality control laboratories and 24/7 shop-floor production lines.

At the core of the Agr TL2000 (C506-TOPLOAD) is a high-precision digital motorized compression mechanism coupled with an advanced loadcell transducer. This architecture empowers operators to adjust topload compression speeds, stroke limits, and force thresholds according to specific corporate testing standards. The instrument accurately replicates typical dynamic and static vertical loading conditions encountered during practical container lifecycles: including acute downward mechanical forces applied by automated high-speed capping/crowning heads during filling operations, as well as prolonged static compression loads endured during multi-tiered warehouse pallet stacking and transit vibration.

The TL2000 features multiple user-programmable evaluation modes:
1. Standard Maximum Load vs. Deflection: Establishes the ultimate compressive force the container can support within a programmed stroke displacement envelope.
2. First Peak Detection: Immediately senses and records the initial yield point where container structural sidewall buckling or creasing commences prior to complete collapse.
3. All Peak & Process Control Modes: Provides granular force-deflection data mapping for advanced bottle redesign, mold validation, and resin qualification.

The instrument is engineered with comprehensive numeric and graphic reporting capabilities, displaying live load vs. deflection curves alongside quantitative summary tables. Featuring a rugged industrial "at-the-line" construction with a space-saving compact footprint, the TL2000 can be deployed directly adjacent to blowmolding machinery or stationed inside central QA suites. Complete with digital connectivity for external plant SPC networks, the Agr TL2000 C506-TOPLOAD represents an indispensable quality management asset for PET/rPET converters, major beverage bottlers, and packaging testing facilities worldwide.

• Manufacturer: Agr International, Inc.
• Origin: 100% USA (United States)
• Product Series: Automated TopLoad Tester for Rigid Containers
• Model Designation: TL2000 (TopLoad Tester)
• System Order Code: C506-TOPLOAD
• Measurement Methodology: High-precision automated vertical force compression with digital loadcell transducer
• Compression Flexibility: Fully adjustable topload compression speed and stroke range
• Programmable Operating Modes:
  - Standard maximum load vs. deflection
  - First peak detection (initial structural buckle sensing)
  - All peak detection
  - Process control analysis mode
• Specimen Compatibility: Rigid plastic containers and bottles (PET, recycled PET/rPET, HDPE, PP, CSD bottles, water bottles, edible oils, chemical containers, pharmaceuticals)
• Data Visualization & Reporting:
  - Quantitative numeric reporting (Peak load, deflection, pass/fail status)
  - Real-time graphic curve reporting (Force vs. Deflection curves)
• User-Selectable Force Units: lbs (pounds), kg (kilograms), N (Newtons)
• Recipe Management: Multi-recipe storage for individual programmable test parameters and container specifications
• Enclosure & Footprint: Rugged industrial design with a compact footprint engineered for at-the-line plant floor or laboratory environments
• Measurement Performance: Exceptional repeatability and reproducibility (R&R) matching certified laboratory standards
• Digital Connectivity: RS-232 / USB communication ports for seamless data export to PCs and plant SPC systems
• Operating Power Supply: 100 - 240 VAC, 50/60 Hz
• Applicable Industries: High-speed PET and recycled PET (rPET) container blowmolding plants, carbonated soft drink (CSD) and beer bottling facilities (F&B), bottled water packaging, edible oil lines, personal care and household chemical containers, sterile pharmaceutical packaging, and third-party certified packaging testing laboratories.
