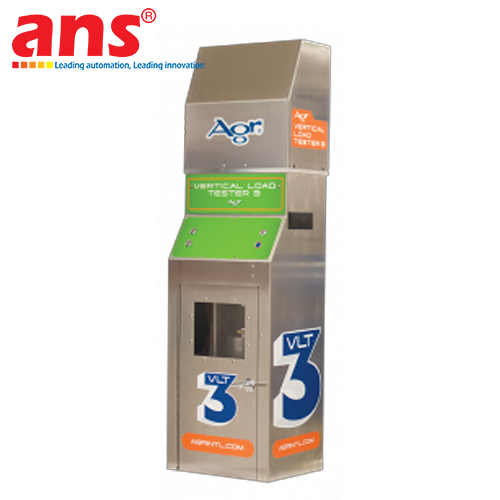

The Agr International Vertical Load Tester 3 (Model: VLT3) is 100% designed, engineered, and manufactured in the United States by Agr International, Inc. – the internationally recognized global benchmark in container inspection, dimensional metrology, and physical strength testing instrumentation. Representing the latest evolution in Agr’s storied lineage of advanced force testing equipment, the VLT3 delivers an advanced laboratory and at-the-line testing platform engineered to assess the axial compressive strength of commercial glass packaging.

At the technological heart of the VLT3 is a high-precision industrial hydraulic loading system capable of applying vertical compressive loads up to an impressive 2,070 kg (5,900 lbs / approx. 20.3 kN) with smooth, linear force ramp-rates. The instrument accommodates two standardized industrial testing methodologies:
1. Pass/Fail Proof Test: Applies vertical force to a pre-selected threshold and dwells to verify structural container integrity without inducing failure, simulating the acute mechanical loads applied by high-speed crown corking mechanisms or ROPP capper spindles.
2. Test to Destruction: Continuously increases axial force until total structural collapse occurs, automatically capturing peak crushing force data to establish catastrophic failure envelopes.

A defining operational advantage of the Agr VLT3 is its native compatibility with Agr’s Ramp Pressure Tester 3 (RPT3): all vertical load test data, recipes, and statistical parameters can be centralized, managed, and displayed directly on the RPT3 color touchscreen user interface. Operators can initiate test routines either via local pushbuttons on the VLT3 chassis or remotely through the primary RPT3 control console, with full user-selectable force units (lbf, kgf, Newtons). Constructed from heavy-duty, corrosion-resistant stainless steel and outfitted with an electromechanically interlocked safety access door, the VLT3 guarantees total operator containment during explosive glass fracture events. The Agr VLT3 serves as an indispensable physical strength evaluation standard for commercial glass container manufacturing plants, major brewing and beverage packaging facilities, and container lightweighting research suites worldwide.

• Manufacturer: Agr International, Inc.
• Origin: 100% USA (United States)
• Product Series: High-Precision Vertical Load Testing System
• Model Designation: Vertical Load Tester 3 (VLT3)
• Force Generation Mechanism: High-precision hydraulic loading system
• Maximum Vertical Loading Capacity: Up to 2,070 kg (5,900 lbs / ~20.3 kN)
• Standard Testing Methodologies:
  - Pass/Fail Test: Pre-selected vertical load hold routine
  - Test to Destruction: Continuous linear ramp until catastrophic container crush/burst
• Selectable Engineering Units: lbf, kgf, Newtons (N)
• System Integration & Controls:
  - Designed to work seamlessly in conjunction with the Agr RPT3 (Ramp Pressure Tester 3)
  - Test data managed, calibrated, and visualized on the central RPT3 touchscreen user interface
  - Dual test initiation capability: Initiate test from local VLT3 chassis controls or the RPT3 UI
• Container Compatibility: Standard commercial glass bottles, jars, flasks, and pharmaceutical vials
• Fixturing & Platen: Self-leveling top compression platen accommodating diverse container heights and body diameters
• Construction: Heavy-duty, industrial-grade stainless-steel construction
• Operator Safety: High-impact containment blast enclosure with an electromechanical safety interlocked door
• Job Setup: Easy, intuitive recipe configuration and parameter storage
• Data Connectivity: Integrated Statistical Process Control (SPC) compatibility, Industry 4.0 ready
• Operating Power Supply: 100 - 240 VAC, 50/60 Hz
• Applicable Industries: Commercial glass container and bottle manufacturing (beer, carbonated soft drinks, wine, spirits, food jars, mineral water), high-speed beverage bottling and brewing conglomerates, automated capping and packaging machinery validation, glass container lightweighting R&D programs, and certified third-party packaging materials testing laboratories.
