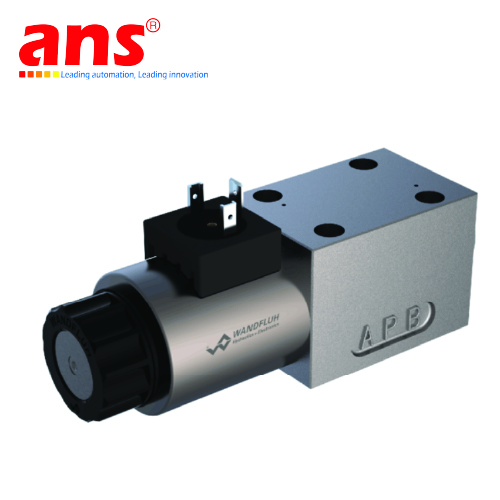

WDMFA06-AB2-R115/WD Valve Wandfluh Vietnam





Solenoid operated spool valve

  • Flange construction
  • 4/2-way impulse execution, detented
  • 4/3-way with spring centred mid position
  • 4/2-way with spring reset
  • Qmax = 80 l/min
  • pmax = 350 bar


Application

Spool valves are mainly used for controlling direction of movement and stopping of hydraulic cylinders and motors. Switching performance and leakage of the valves must be taken into account when designing the system. Solenoid spool valves are suitable for machine tools and handling systems of any kind. ​ ​
