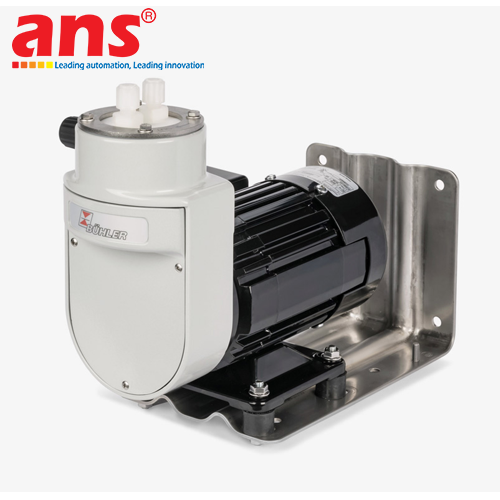

The Bühler Technologies P2.3 Sample Gas Pump is a high-performance diaphragm extraction pump engineered by Bühler Technologies GmbH (Germany)—a recognized global leader in sample gas conditioning systems. This pump is designed to reliably extract and convey sample gas from sampling probes through conditioning lines to gas analyzers in continuous emission monitoring systems (CEMS).

The key advantage of the P2.3 model lies in its chemically inert pump head construction, manufactured from premium corrosion-resistant materials such as PTFE, PVDF, or 1.4571 (316Ti) Stainless Steel combined with a PTFE-coated diaphragm. This ensures complete protection against aggressive gases including SO2, SO3, NOx, HCl, HF, H2S, CO, CO2, and organic solvent vapors without altering the sample composition.

Featuring low vibration emissions, quiet running performance, and smooth flow delivery, the Bühler P2.3 is built for continuous 24/7 duty in demanding industrial plant environments. The straightforward pump head design allows fast and easy maintenance, permitting quick diaphragm and valve replacements directly on-site to minimize system downtime.

• Manufacturer: Bühler Technologies GmbH
• Product Series / Model: P2.3 (Sample Gas Diaphragm Pump)
• Country of Origin: Germany
• Operating Principle: Electromechanical Diaphragm Pump
• Free Flow Rate: Max approx. 400 Nl/h (approx. 6.6 L/min)
• Max Operating Pressure: Max 1.5 bar - 2.0 bar relative
• Max Vacuum Capacity: Down to 0.3 bar absolute
• Wetted Materials: PTFE, PVDF, Viton (FKM), Stainless Steel 1.4571 (316Ti)
• Diaphragm Material: PTFE-coated EPDM
• Max Inlet Gas Temperature: Up to +70°C / +100°C (depending on head material)
• Ambient Operating Temperature: -20°C to +60°C
• Power Supply Options: 230V AC (50/60 Hz), 115V AC (50/60 Hz), or 24V DC
• Power Consumption: Approx. 55W to 70W
• Inlet / Outlet Port Connections: G 1/4" or NPT 1/4" female threads
• Protection Class: IP 20 / IP 40 / IP 55 (depending on housing version)
• Net Weight: Approx. 2.0 kg - 2.8 kg
• System Compatibility: Excellent chemical resistance, inert gas path, fully integrable into CEMS gas conditioning panels, sample coolers, and analyzer systems.
