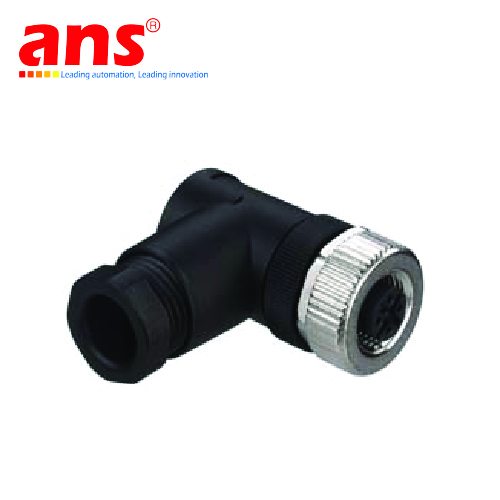

Leuze KD 095-4 – M12 Female 4-Pin Angled Connector (IP67)

The Leuze KD 095-4 is a high-quality M12 female connector with 4 pins (A-coded), designed in an angled form for space-saving and secure connections in industrial automation. With robust housing, screw terminal wiring, and IP67 protection, it ensures reliable performance even in harsh environments.


🔧 Key Technical Specifications

  • Connector type: M12 female, angled

  • Coding: A-coded, 4 pins

  • Rated voltage: up to 250 V AC/DC

  • Current rating: up to 4 A (AWG 24)

  • Connection method: screw terminal

  • Housing: Metal body with plastic grip

  • Dimensions: 35 × 20 × 27.5 mm; Weight ~23 g

  • Operating temperature: −25 °C to +85 °C

  • Protection class: IP67 – dust-tight and water-resistant


Key Benefits

  • Fast & secure connection for sensors and I/O devices

  • Durable design with metal housing and IP67 rating

  • Easy maintenance thanks to screw terminal wiring

  • Wide compatibility with Leuze sensors and automation systems

  • Suitable for harsh environments in manufacturing and logistics


📌 Typical Applications

  • Connecting optical sensors, proximity switches, encoders, barcode readers

  • Integration with PLC, PAC, and I/O modules

  • Use in automotive production, robotics, packaging, food & beverage, logistics systems
