Diode Bridge AMB 60-16 SKB 60/16 AS ENERGI Vietnam
Price: Contact
Brand: AS ENERGI
Category: Thiết bị an toàn & Phụ kiện điện tử
Supplier: ansvietnam
Origin: China
0911472255Diode Bridge AMB 60-16 SKB 60/16 AS ENERGI Vietnam

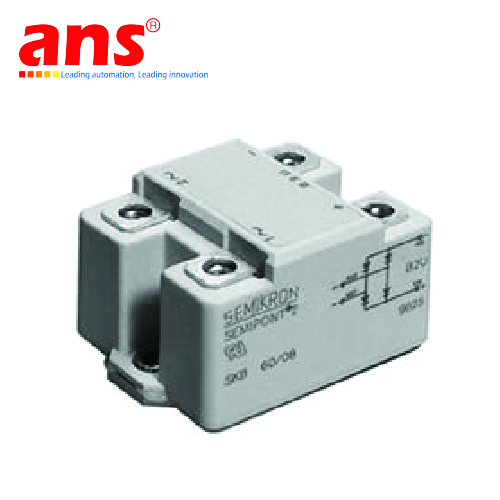

Single-Phase Diode Bridge Rectifier AMB 60-16AS ENERGITM
The AMB 60-16AS ENERGITM is a high-performance semiconductor rectifier, designed as a replacement and equivalent to the Semikron SKB 60/16 (07187052) single-phase diode bridge.
-
Output DC Current (ID): 60 A
-
Repetitive Peak Reverse Voltage (VRRM): 1600 V
AC voltage is applied to the "~" input terminals. During each half-cycle, the current flows through two diodes, producing at the "+" and "–" outputs a pulsating DC current with twice the input frequency.
Key Features:
-
Low conduction losses
-
High reverse voltage and current handling capability
-
Rugged industrial plastic housing with screw mounting
-
High surge current capacity
-
Insulated large-area base for reliable mounting
-
Easy installation on chassis
Typical Applications:
-
Single-phase rectifiers for power supplies
-
Input rectifiers for inverters
-
Excitation rectifiers for DC motors
-
Battery charging rectifiers
Advantages of AMB 60-16AS:
-
Industrial-grade housing design
-
Low static and dynamic losses
-
High VRRM/VRSM ratings
-
Proven reliability in various industrial environments
Additional Information:
-
Detailed datasheet, PDF specifications, drawings, and dimensions are available.
-
Product comes with a 2-year warranty from the date of purchase.
-
Technical passport and conformity certificate can be provided upon request.
-
Final pricing depends on voltage class, order quantity, delivery terms, manufacturer, country of origin, and payment conditions.
