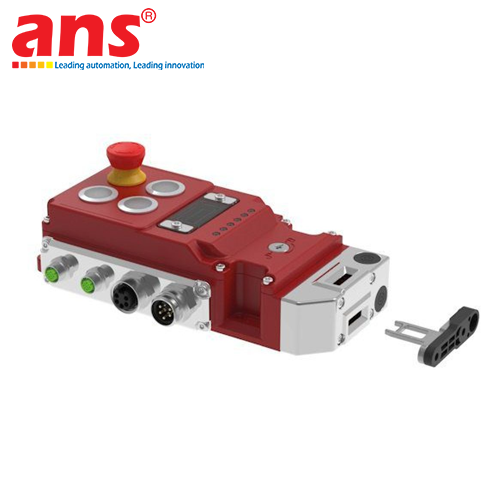

The UGB-NET Universal Gate Box (Part Number: 528110-1E-2BG-3BR-4BB - Model: UGB-NET-M-CIP-RR-TK Right-Hand) engineered by IDEM Safety Switches Ltd (United Kingdom) provides an advanced all-in-one safety interlock and operator control station designed for networked safety environments. This heavy-duty unit combines high-level anti-tamper RFID sensing, an ultra-strong 3000N solenoid guard locking mechanism, native EtherNet/IP CIP Safety communication, a mechanically coded Trapped Key (TK) system, an internal mechanical Rear Escape Release button (RR), and 4 integrated pilot control devices.

PRODUCT CODE DECODING (528110-1E-2BG-3BR-4BB):
- 528110 (UGB-NET-M-CIP-RR-TK Right-Hand): Heavy-duty die-cast metal housing painted red, configured for right-hand hinged or sliding access doors, CIP Safety over EtherNet/IP communication, mechanical Rear Release button (RR) protecting personnel trapped inside machine enclosures, and Trapped Key safety mechanism (TK).
- 1E (Position 1): Illuminated Emergency Stop (E-Stop) push-button.
- 2BG (Position 2): Green Push Button with integrated LED illumination.
- 3BR (Position 3): Red Push Button with integrated LED illumination.
- 4BB (Position 4): Blue Push Button with integrated LED illumination.

KEY ADVANTAGES:
- Direct connection into EtherNet/IP CIP Safety architectures via dual M12 D-Coded Ethernet ports supporting daisy-chain network topologies, eliminating extensive discrete cabinet wiring.
- Certified to the highest functional safety standards: Cat 4 / PLe (ISO 13849-1) and SIL 3 (IEC 62061).
- Uniquely RFID coded actuator eliminating unauthorized bypass and tampering.

• Manufacturer: IDEM Safety Switches Ltd
• Origin: United Kingdom
• Part Number: 528110-1E-2BG-3BR-4BB
• Product Model: UGB-NET-M-CIP-RR-TK (Right-Hand)
• Safety Network Protocol: EtherNet/IP with CIP Safety
• Door Handing: Right-Hand access door configuration
• Guard Holding Force (ISO 14119): F1Max = 3000N, Fzh = 2307N
• Integrated Lid Control Devices (4 Stations):
  - Position 1 (1E): Illuminated Emergency Stop Button (E-Stop)
  - Position 2 (2BG): Illuminated Green Push Button (Button Green)
  - Position 3 (3BR): Illuminated Red Push Button (Button Red)
  - Position 4 (4BB): Illuminated Blue Push Button (Button Blue)
• Auxiliary Safety Mechanisms:
  - Rear Escape Release (RR): Mechanical red push-button allowing rapid egress if trapped inside guarded areas
  - Trapped Key (TK): Mechanical lock isolating access keys while machinery is active
  - RFID Coded Interlocking: High coding level Type 4 RFID sensor (Sao = 5mm, Sar = 20mm)
• Network & Power Connectivity:
  - Data Ports: 2 x M12 D-Coded 4-Pin (Industrial Ethernet daisy-chain support)
  - Power Ports: 2 x M12 A-Coded 5-Pin (or 7/8")
• Operating Voltage: 24V DC (+10% / -15%) SELV/PELV
• Maximum Current Consumption: 600 mA (Lock solenoid energized) / Up to 1.0 A
• E-Stop Response Time: 36 ms max. (E-stop actuation to fieldbus transmission)
• Enclosure Materials: Heavy-duty painted die-cast aluminium body, polished Stainless Steel 316 head and actuator
• Ingress Protection: IP65 (Protected against dust ingress and low-pressure water jets)
• Safety Classification: Category 4, PLe (ISO 13849-1), SIL 3 (IEC 62061), ISO 14119, IEC 60947-5-3
• Operating Temperature: -5°C to +50°C
• Typical Applications: Robotic welding cells, automotive assembly lines, automatic palletizing systems, CNC machine centers, and automated manufacturing lines.
