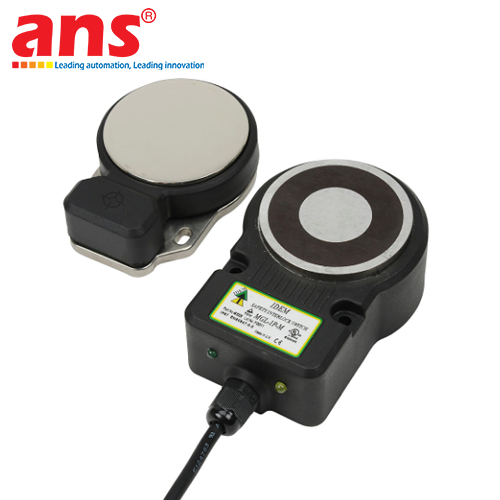

The MGL Series Electromagnetic Non-Contact RFID Safety Switch (Part Number: 463006 - Model: MGL-1P-M QC-M12) manufactured by world-renowned IDEM Safety Switches Ltd (United Kingdom) provides an advanced process interlocking solution for automated machinery. Combining high-level anti-tamper RFID technology with powerful magnetic holding force, this switch keeps guard doors securely locked during hazardous running cycles, allowing access only after hazardous motion has completely ceased.

PRODUCT CODE DETAILS:
- Part Number: 463006
- Model: MGL-1P-M QC-M12
- Description: Master Coded RFID Non-Contact Magnetic Guard Locking Switch
- Architecture: Housed in robust chemical-resistant polyester engineering plastic, equipped with an industrial M12 Quick Connect (QC) connector for rapid, error-free wiring and maintenance. Designed with IP67 and IP69K ingress protection, ensuring outstanding reliability even under demanding washdown conditions.

• Manufacturer: IDEM Safety Switches Ltd
• Origin: United Kingdom
• Part Number: 463006
• Model: MGL-1P-M QC-M12
• Operating Principle: Non-contact RFID coded magnetic guard locking switch
• RFID Coding: Master Coded (Flexible serial pairing)
• Enclosure Material: Robust Polyester engineering plastic body (Chemical resistant)
• Electromagnetic Holding Force: Fmax up to 1100N - 1500N (Depending on actuator alignment)
• Operating Voltage: 24V DC (+/- 10%)
• Connection Type: M12 Quick Connect 8-Pin connector (QC-M12)
• Safety Outputs: 2 x OSSD Solid State Safety Outputs, 1 x Auxiliary Monitoring Output
• Safety Classification: Category 4, PLe (ISO 13849-1), SIL 3 (IEC 62061)
• Ingress Protection: IP67 / IP69K (Submersible and high-pressure high-temperature washdown proof)
• Status Indication: Multi-colour LEDs indicating guard state, locking status, and diagnostics
• Operating Temperature: -25°C to +40°C
• Typical Applications: CNC machine enclosures, packaging machinery, food and beverage washdown areas, robotic automation cells, and automated material handling gates.
