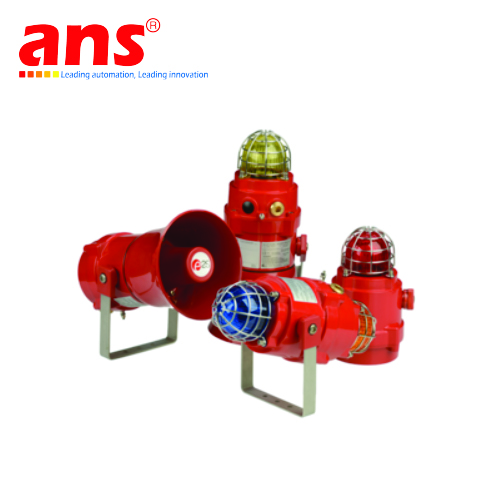

BExCS11005DPFDC024AN4A1R/R Explosion Proof Alarm E2S Vietnam





Description

Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation. The BEx explosion proof Ex d range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have dual cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Features

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Automatic synchronisation on multi-beacon & sounder systems.
  • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
  • Xenon tubes mechanically secured against shock & vibration
  • Very large termination area.
  • Dual M20 cable entries – adaptors available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 120 candela effective light intensity.
  • UV stable PC, field replaceable, colour lens filters.
  • ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.
