Actuator K-SS-Ex 1NC 1NO 3M HFH 208016HFH Idem Safety Vietnam

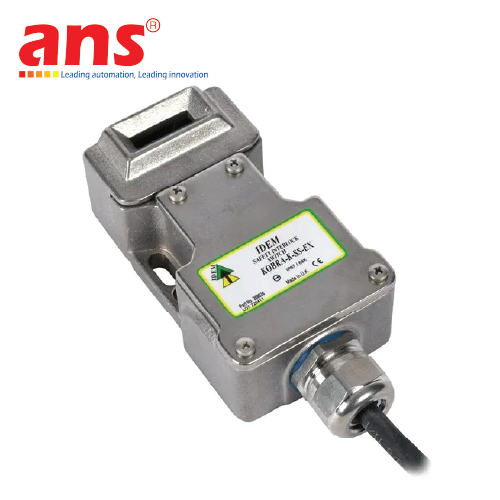

Designed with a Stainless Steel 316 housing the K-SS-Ex is an extremely strong ATEX approved tongue operated interlock safety switch.

Manufactured and designed to fit to the leading edge of sliding, hinged or lift off machine guards to provide positively operated switching contacts and provide a tamper resistant, not easily defeatable key mechanism.

The K-SS-Ex has been designed to provide robust position interlock detection for moving guards within areas where explosive atmospheres are present.

All Explosion proof tongue switches are supplied pre-wired with 3m of cable (longer available upon request)

FEATURES:

  • High power switching up to 230Vac 4A
  • 1NC 1NO or 2NC or 2NC 2NO
  • High tolerance to guard misalignment
  • Enclosure protection to IP67 and IP69K suitable for wash down
  • Choice of actuators to suit mounting conditions and alignment
  • Rotatable heads that provides 4 actuator positions
Product Group Part No. Description
K-SS-EX EXPLOSION PROOF 208016 K-SS-Ex 3M ‘1NC 1NO’
K-SS-EX EXPLOSION PROOF 208016A K-SS-Ex 3M ‘1NC 1NO’ – std actuator
K-SS-EX EXPLOSION PROOF 208016F K-SS-Ex 3M ‘1NC 1NO’ – flat actuator
K-SS-EX EXPLOSION PROOF 208016HF K-SS-Ex 3M ‘1NC 1NO’ – HF Actuator
K-SS-EX EXPLOSION PROOF 208016HFH K-SS-Ex 3M ‘1NC 1NO’ – HFH Actuator
K-SS-EX EXPLOSION PROOF 208016PF K-SS-Ex 3M ‘1NC 1NO’ – PF actuator
K-SS-EX EXPLOSION PROOF 208019 K-SS-Ex 3M ‘2NC’
K-SS-EX EXPLOSION PROOF 208019A K-SS-Ex 3M ‘2NC’ – std actuator
K-SS-EX EXPLOSION PROOF 208019F K-SS-Ex 3M ‘2NC’ – flat actuator
K-SS-EX EXPLOSION PROOF 208019HF K-SS-Ex 3M ‘2NC’ – HF Actuator
K-SS-EX EXPLOSION PROOF 208019HFH K-SS-Ex 3M ‘2NC’ – HFH Actuator
K-SS-EX EXPLOSION PROOF 208019PF K-SS-Ex 3M ‘2NC’ – PF actuator
K-SS-EX EXPLOSION PROOF 208026 K-SS-Ex 3M ‘2NC 2NO’
K-SS-EX EXPLOSION PROOF 208026A K-SS-Ex 3M ‘2NC 2NO’ – std actuator
K-SS-EX EXPLOSION PROOF 208026F K-SS-Ex 3M ‘2NC 2NO’ – flat actuator
K-SS-EX EXPLOSION PROOF 208026HF K-SS-Ex 3M ‘2NC 2NO’ – HF Actuator
K-SS-EX EXPLOSION PROOF 208026HFH K-SS-Ex 3M ‘2NC 2NO’ – HFH Actuator
K-SS-EX EXPLOSION PROOF 208026PF K-SS-Ex 3M ‘2NC 2NO’ – PF actuator
