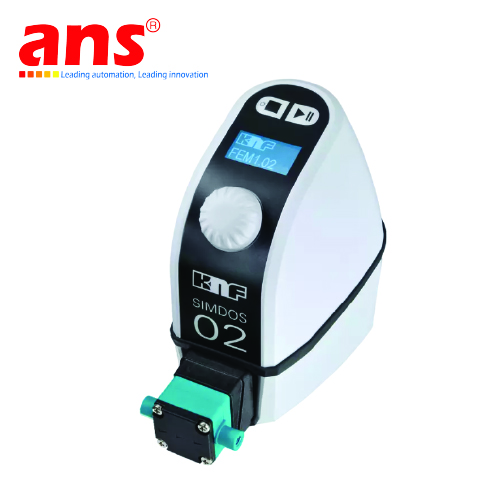

KNF SIMDOS® 02 FEM 1.02 RC-P – Precision Diaphragm Dosing Pump for Laboratory & Process Applications
The KNF SIMDOS® 02 FEM 1.02 RC-P is a high-precision diaphragm metering pump designed for liquid dosing applications that demand accuracy, chemical compatibility, and flexible control. Equipped with manual, analog, and RS-232 interface options, the pump offers programmable dosing, self-priming capability, and dry-run safety. Whether in labs or industrial settings, the FEM 1.02 RC-P ensures consistent, reliable liquid delivery. KNF Group+1
🔧 Key Features
| Feature | Detail |
|---|---|
| Flow Rate | 0.03 – 20 ml/min |
| Maximum Pressure | Up to 6 bar (rel.) |
| Programmable Dosing Volume | From 0 to 999 ml |
| Suction Height | Max ~2 mWg |
| Media Temperature | 5 – 80 °C |
| Ambient Temperature | 5 – 40 °C |
| Wetted Material Options | Pump head: PTFE, PP, PVDF, Stainless Steel; Diaphragm: PTFE-coated, FFKM; Valves: Kalrez® FFKM KNF Group |
| Control Modes | Manual, analog, RS-232 with LCD graphic display |
✅ Benefits & Advantages
-
Chemical resistance: Many material options allow compatibility with aggressive media.
-
Accuracy & reliability: Stable flow performance, even at very low flow rates, with excellent repeatability.
-
Self-priming & dry-run safe: No damage even if the pump runs dry; primes itself for ready operation.
-
Versatile control: With manual knob, analog input, RS-232, programmable dosing for flexible automation.
-
Compact & user-friendly: Small footprint saves bench space; intuitive interface; simple calibration.
