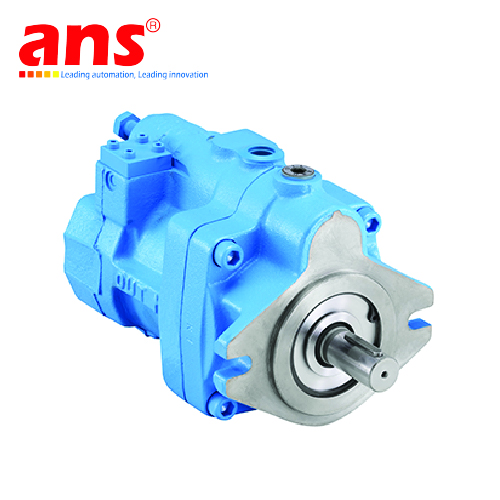

Variable Volume Piston Pump PVS-1B-16N1-12 NACHI Vietnam
Price: Contact
Brand: NACHI Hydraulics
Category: Pum - Bơm
Supplier: ansvietnam
Origin: Japan
0911472255
Variable Volume Piston Pump PVS-1B-16N1-12 NACHI Vietnam
The PVS Piston Pump is a NACHI proprietary energy saving, low noise pump with a semi-circular barrel swash plate that receives pressure on its surface and ensures a stable discharge volume by eliminating excess discharge. The swash plate conserves energy, enables the effective use of power corresponding to the load cycle, and helps reduce hydraulic costs. Proprietary low noise mechanics are incorporated on the shoe, swash plate, valve plate, and other locations to ensure a quieter operation.
Handling:
- Use flexible couplings for connecting the pump shaft to the drive shaft, and prevent a radial or thrust load from being applied on the pump shaft.
- For centering of the pump shaft, limit the eccentricity between the drive shaft and hydraulic pump shaft to 0.05 mm, and keep the angle error within 1 inch.
- Set the length of insertion between coupling and hydraulic pump shafts so that it is within at least 2/3 or more of the coupling width.
- Use a sufficiently rigid pump mounting base.
- Set the pressure on the pump suction side to -4 psi (-0.03 MPa) or more (suction port flow velocity within +6 ft/sec or 2 m/sec).
- Raise part of the drain piping to above the top most part of the pump body and insert the return section of the drain piping into the hydraulic fluid. Also, observe the values in Table 1 to limit the drain back pressure to 14.5 lbs/in² (0.1 MPa).
- Mount the pump so the pump shaft is oriented horizontally.
