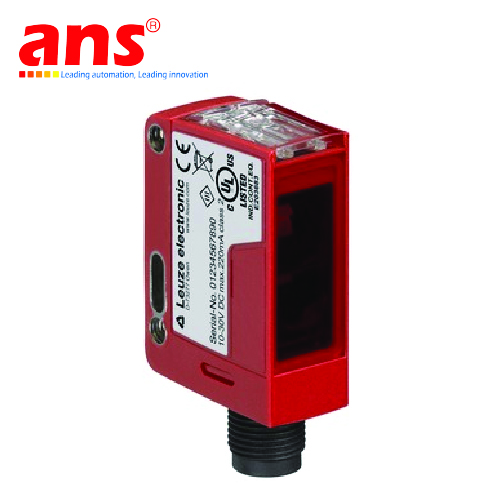

Dynamic reference diffuse sensor DRT25C.3R/LT-M12 Leuze Vietnam
Basic Data
- Series 25C
- Operating principle Reference teach on reference surface (plastic roller chain or plastic link conveyor)
- Application Detection of bottle and can containers
Optical Data
- Operating range 0.08 ... 0.4 m
- Operating range Max. distance to reference surface
- Operating range limit, white 90% 0.05 ... 0.45 m
- Minimum object height 80 mm
- Light source LED, Red
- Wavelength 645 nm
- LED group Exempt group (in acc. with EN 62471)
