Electric Actuator HQ-004[40NM] HKC Vietnam
Price: Contact
Brand: HKC
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Korea
Gọi lại cho tôi
0911472255Electric Actuator HQ-004[40NM] HKC Vietnam

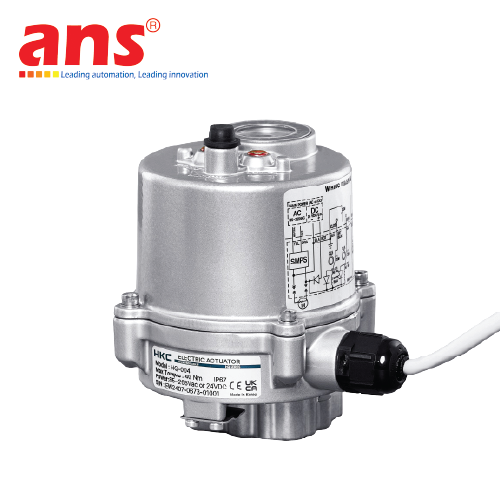

• The HQ-004, electric quarter-turn actuator, is designed for small size rotary valve applications, such as buttery, ball, and plug valve.
• Aluminum die-cast, compact size, and light weight.
• Manual lever included.
• Mechanical indicator and LED lamp signal (open/close) included.
Material • Aluminium alloy
Enclosure • Weatherproof enclosure IP67
Certificates & approvals • RINA type approval
Torque
- • Standard: 40 Nm (recommended usage: 30 Nm)
- • High speed: 20 Nm
Power
- • 85-265 V ac 1ph, 50/60 Hz, ±10%
- • 12 V dc
- • 24 V dc
Duty cycle • S2(on-off): 30 mins, (room temp., average load of 50% of max. torque)
Travel angle • 0-90°
