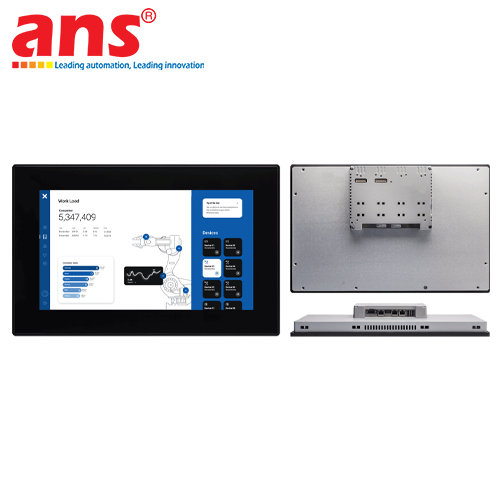

The EXOR Oceania eX715MH Industrial HMI Touch Panel (part of the flagship eX700MH High-Brightness Marine Series) is a premium 15.6-inch Full HD widescreen human-machine interface designed to exceed standard industrial requirements, specifically optimized for marine bridge controls, outdoor applications, offshore oil rigs, and harsh industrial automation environments. Manufactured by EXOR International (Italy) and distributed by EXOR Oceania, the eX715MH perfectly blends Quad-Core processing performance, ultra-bright sunlight-readable display clarity, and cutting-edge IIoT connectivity.

Featuring a 15.6-inch Full HD (1920x1080 pixels) widescreen color display, the eX715MH incorporates Projected Capacitive (PCAP) multi-touch technology with a rugged glass front. A key highlight of the "MH" series is its extreme high brightness of 800 cd/m² combined with Optical Bonding technology, which eliminates internal light reflections and guarantees exceptional readability under direct sunlight on vessel decks or open-air control stations. The unit holds full Type Approvals from major marine classification societies including DNV-GL, Lloyd's Register, ABS, Bureau Veritas, and RINA.

Underneath its rugged enclosure, the EXOR eX715MH is powered by a high-performance ARM Cortex-A9 Quad-Core processor, 2GB RAM, and 8GB Flash memory running on a real-time Linux operating system. It boasts exceptional network flexibility with 3 independent 10/100 Mbit Ethernet ports (supporting network separation for OT/IT security and integrated switch/router capabilities), software-configurable RS-232/422/485 serial ports, 2 x USB Hosts, SD Card slot, and PLCM expansion module slots.

Pre-loaded with JMobile Runtime, the eX715MH supports advanced vector graphics, over 200 industrial PLC communication protocols, OPC UA Server/Client (Pub/Sub), MQTT gateway capabilities, and Corvina Cloud connectivity. Protected by an IP66 front panel and engineered for an extended operating temperature range from -20°C to +60°C, the eX715MH is the ultimate 15.6-inch HMI solution for modern maritime and industrial automation systems.

• Manufacturer: EXOR International / EXOR Oceania
• Product Line: Industrial & Marine High-Brightness HMI Touch Panels (eX700MH Series)
• Model Reference: eX715MH
• Display Size: 15.6 inches (16:9 aspect ratio)
• Display Technology: TFT Color LCD, 16.7M colors
• Resolution: 1920 x 1080 pixels (Full HD)
• Touchscreen Technology: Projected Capacitive (PCAP) Multi-touch glass front
• Backlight / Brightness: LED High-Brightness / 800 cd/m² (Dimming 0 - 100%)
• Optical Bonding: Yes (Sunlight readable, anti-glare technology)
• Processor (CPU): ARM Cortex-A9 Quad-Core 800 MHz
• Memory: RAM 2 GB | Flash Disk 8 GB
• Operating System: Linux RT
• Ethernet Ports: 3 x 10/100 Mbit (Integrated Bridge/Routing functionality)
• Serial Port: 1 x RS-232/422/485 (Software configurable)
• USB Port: 2 x USB 2.0 Host
• Expansion Slot: 1 x SD Card slot, supports PLCM plugin expansion modules
• Software / Runtime: JMobile Runtime (Supports OPC UA, MQTT, CODESYS V3 SoftPLC)
• Power Supply Voltage: 24V DC (Operating range 10 - 32V DC)
• Front Panel Protection: IP66 (UV resistant, dust-tight, hose water proof)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 5 - 85% RH (Non-condensing)
• Certifications & Marine Approvals: DNV-GL, ABS, BV, LR, RINA, CE, cULus Class I Div 2, ATEX Zone 2/22, IECEx Zone 2/22
• Panel Cutout Dimensions: 411 x 256 mm
• Overall Dimensions (W x H x D): 422 x 267 x 56 mm
• Net Weight: ~4.1 kg
