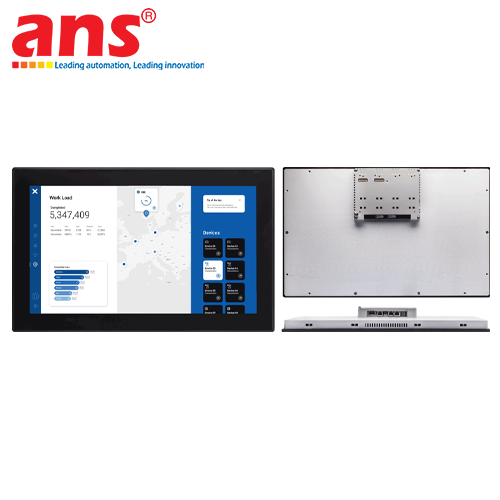

The EXOR Oceania eX721M Industrial HMI Touch Panel (part of the flagship eX700M Marine Series) is a large-format 21.5-inch Full HD human-machine interface designed to exceed standard industrial requirements, specifically optimized for marine bridge control centers, offshore rigs, and complex industrial automation environments requiring expansive screen real estate. Manufactured by EXOR International (Italy) and distributed by EXOR Oceania, the eX721M perfectly blends Quad-Core processing power, Full HD visual clarity, and cutting-edge IIoT connectivity.

Featuring a 21.5-inch Full HD (1920x1080 pixels) widescreen color display, the eX721M incorporates Projected Capacitive (PCAP) multi-touch technology with a glass front. Designed with Optical Bonding technology, it minimizes internal light reflections to ensure superior readability in high-ambient light environments. The unit holds full Type Approvals from major marine classification societies including DNV-GL, Lloyd's Register, ABS, Bureau Veritas, and RINA.

Underneath its rugged enclosure, the EXOR eX721M is powered by a high-performance ARM Cortex-A9 Quad-Core processor, 2GB RAM, and 8GB Flash memory running on a real-time Linux operating system. It boasts exceptional network flexibility with 3 independent 10/100 Mbit Ethernet ports (supporting network separation for OT/IT security and integrated switch/router capabilities), software-configurable RS-232/422/485 serial ports, 2 x USB Hosts, SD Card slot, and PLCM expansion module slots.

Pre-loaded with JMobile Runtime, the eX721M supports advanced vector graphics, over 200 industrial PLC communication protocols, OPC UA Server/Client (Pub/Sub), MQTT gateway capabilities, and Corvina Cloud connectivity. Protected by an IP66 front panel and engineered for an extended operating temperature range from -20°C to +60°C, the eX721M is the ultimate 21.5-inch HMI solution for modern maritime and industrial automation systems.

• Manufacturer: EXOR International / EXOR Oceania
• Product Line: Large-Format Industrial & Marine HMI Touch Panels (eX700M Series)
• Model Reference: eX721M
• Display Size: 21.5 inches (16:9 aspect ratio)
• Display Technology: TFT Color LCD, 16.7M colors
• Resolution: 1920 x 1080 pixels (Full HD)
• Touchscreen Technology: Projected Capacitive (PCAP) Multi-touch glass front
• Backlight / Brightness: LED / 400 cd/m² (Dimming 0 - 100%)
• Optical Bonding: Yes (Sunlight readable, anti-glare)
• Processor (CPU): ARM Cortex-A9 Quad-Core 800 MHz
• Memory: RAM 2 GB | Flash Disk 8 GB
• Operating System: Linux RT
• Ethernet Ports: 3 x 10/100 Mbit (Integrated Bridge/Routing functionality)
• Serial Port: 1 x RS-232/422/485 (Software configurable)
• USB Port: 2 x USB 2.0 Host
• Expansion Slot: 1 x SD Card slot, supports PLCM plugin expansion modules
• Software / Runtime: JMobile Runtime (Supports OPC UA, MQTT, CODESYS V3 SoftPLC)
• Power Supply Voltage: 24V DC (Operating range 10 - 32V DC)
• Front Panel Protection: IP66 (UV resistant, dust-tight, hose water proof)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 5 - 85% RH (Non-condensing)
• Certifications & Marine Approvals: DNV-GL, ABS, BV, LR, RINA, CE, cULus Class I Div 2, ATEX Zone 2/22, IECEx Zone 2/22
• Panel Cutout Dimensions: 534 x 319 mm
• Overall Dimensions (W x H x D): 552 x 337 x 56 mm
• Net Weight: ~6.1 kg
