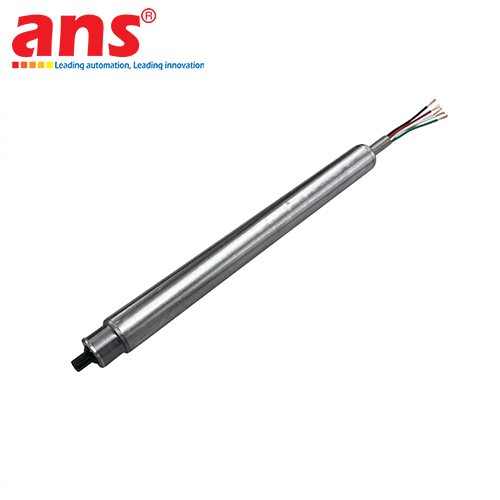

ITOH DENKI PM380LS-60-400-D-024-DR BRUSHLESS DC MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & HIGH-SPEED LOGISTICS ARCHITECTURE
The Itoh Denki PM380LS-60-400-D-024-DR is a next-generation Power Moller – Motorized Driven Roller (MDR) tailored for compact, high-precision conveyor pathways, engineered and built 100% in Japan. This hardware serves as the primary propulsion engine for automated conveyor arrays, housing an advanced Brushless DC (BLDC) motor and a precision planetary gearbox within a slim 38.0mm diameter steel tube shell. The convergence of minimalist design, safe 24V DC electrical power, and 60 meter-per-minute high-speed performance positions the PM380LS as the definitive solution for sorting small e-commerce parcels, electronics, and fast-moving consumer goods (FMCG) in intelligent distribution hubs. The unit operates as a truly "maintenance-free" drive node—generating no carbon dust, functioning silently, and delivering peak reliability for mission-critical sorting infrastructure.

BRUSHLESS DC TECHNOLOGY & HIGH-SPEED THROUGHPUT
The technical advantage of the PM380LS series resides in its internal Brushless DC (BLDC) architecture:
- Ultra-Quiet Operation: By eliminating the friction and wear typical of mechanical carbon brushes, the roller maintains near-silent transit, making it ideal for cleanroom electronics assembly lines or office-proximate fulfillment nodes.
- Extreme Longevity: The elimination of brush wear translates into industry-leading service life, drastically lowering total cost of ownership (TCO) by reducing unscheduled downtime and maintenance interventions.
- High-Speed Throughput: Rated at 60 meters per minute, this unit supports the intense throughput requirements of modern e-commerce parcel sorting, enabling facilities to classify thousands of products per hour with precision and reliability.

SAFE 24V DC POWER & SYSTEM INTEGRATION
- Industrial Safety: Standardizing on 24V DC ensures the highest electrical safety rating for site personnel, effectively eliminating electric shock risks during routine maintenance, package clearing, or physical line adjustments.
- Rapid Interconnects (DR Option): The "DR" suffix denotes an integrated 6-pin D-shaped connector, streamlining installation via "click-and-go" connectivity to standard Itoh Denki Driver Cards, thereby reducing manual wiring errors and installation duration.
- ZPA (Zero Pressure Accumulation) Synergy: This roller is a core component for ZPA conveyor zones, where Itoh Denki Driver Cards (such as the CB-018S) command the roller to idle whenever downstream product accumulation is detected. This logic minimizes idle energy consumption, reducing operational power costs by up to 70% compared to legacy continuous-drive conveyor designs.

DYNAMIC PERFORMANCE & DRIVE SPECIFICATIONS
- Equipment Manufacturer: Itoh Denki (Japan)
- Device Model: PM380LS-60-400-D-024-DR
- Equipment Classification: Motorized Driven Roller (MDR)
- Tube Diameter: 38.0 mm
- Effective Tube Length: 400 mm
- Nominal Belt Speed: 60 meters per minute
- Drive System: Brushless DC Motor (BLDC technology)

ELECTRICAL SPECIFICATIONS & INTEGRATED HARDWARE
- Rated Operating Voltage: 24 V DC (Safe low-voltage industrial standard)
- Transmission System: Integrated high-speed planetary gear reduction architecture
- Interconnect Interface (DR Option): 6-pin D-shaped quick-connect port for rapid field deployment
- Controller Requirement: Requires pairing with an Itoh Denki Driver Card for logic command and hardware diagnostic management.

MECHANICAL PROPERTIES & STRUCTURAL INTEGRITY
- Tube Material: Precision-machined, high-strength steel with corrosion-resistant finish
- Mechanical Design: Compact footprint, eliminates external drive chains, timing belts, or pulleys
- Weight Profile: Optimized for conveyor tracks requiring short pitch spacing
- Operational Profile: Maintenance-free, carbon-dust-free, cleanroom-compliant engineering.

ENVIRONMENTAL SPECTRUM & APPLICATION MANDATES
- Primary Application Profiles: Logistics parcel sortation, electronic component transit, ZPA conveyor staging, right-angle transfer systems.
- Economic Advantage: Maximized energy efficiency via ZPA, accelerated sortation velocity, and uncompromising safety standards for plant-floor personnel.
