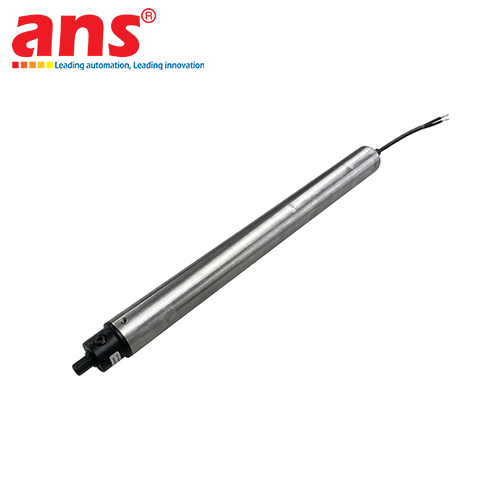

ITOH DENKI PM380LS-60-400-D-024 HIGH-SPEED BRUSHLESS DC MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & HIGH-SPEED SORTATION LOGISTICS INFRASTRUCTURE
The Itoh Denki PM380LS-60-400-D-024 is a premium, high-tech industrial motorized driven roller system (Power Moller / Motorized Driven Roller - MDR) configured specifically for high-velocity distribution and sortation frameworks, developed and manufactured 100% in Japan by the global market leader Itoh Denki. This advanced device represents the definitive technological solution for compact, "All-in-one" conveyor engineering, embedding a wear-free Brushless DC (BLDC) motor and an ultra-precise micro planetary reduction gear cluster entirely within a slim 38mm diameter structural steel tube barrel. This smart geometric enclosure completely eliminates legacy external drive arrays such as heavy motors, high-maintenance drive chains, timing belts, or exposed pulleys, yielding an unbroken, low-profile conveyor line that runs near-silent while maximizing industrial workplace safety indices. Utilizing high-efficiency brushless metallurgy paired with a highly responsive, touch-safe low-voltage 24V DC input rail, this MDR functions as a critical backbone component automating zero pressure accumulation (ZPA) zoning, rapid distribution gateways, e-commerce fulfillment hubs, and cleanroom electronics assembly pathways supported via official Itoh Denki Vietnam distribution links.

SOLID-STATE BRUSHLESS DC MOTOR METALLURGY & SLIM 38MM BARREL ADVANTAGE
The primary technical asset securing the extreme operational longevity of the PM380LS-60-400-D-024 model resides in its internal Brushless DC (BLDC) motor core:
- By systematically eradicating the physical friction, brush wear, and electrical arc tracking characteristic of traditional brushed motors, the internal power cell maintains an incredibly quiet visual and acoustic profile. It releases zero carbon particulate contamination or electrical spark arcs, aligning perfectly with strict class-isolated cleanroom parameters required in semiconductor microcircuit fabs and electronic PCB sub-assembly lines.
- The minimalist geometric profile featuring a 38.0 mm outer tube diameter (Code 380) grants system layout engineers an unprecedented spatial advantage. It enables close-proximity roller positioning (short pitch/pitch distances), creating an ultra-smooth, continuous structural transit plane. This prevents thin e-commerce envelopes, lightweight cardboard packages, or small plastic components from sagging, tilting backward, or jamming between adjacent rollers. The effective structural tube width tracks a standardized narrow width of exactly 400 mm (Code 400 / 40cm), designed for drop-in frame mounting inside machine frames measuring 41cm to 45cm clear width.

MAXIMIZING PACKAGING THROUGHPUT VIA 60 M/MIN VELOCITY & VERSATILE STANDARD WIRES
- Advanced Volumetric Throughput Capacity (Code 60): Inside modern mega-fulfillment hubs, sorting thousands of loose parcels per hour dictates intense line velocities. Engineered with a nominal linear velocity rating of approximately 60 meters per minute, the PM380LS satisfies intense sortation velocity parameters, accelerating cargo items swiftly toward destination chutes or high-frequency 90-degree right-angle transfer pop-up modules with zero inertia lag.
- Flexible Industrial Standard Wire Leads: This product variant features a heavy-duty loose bare wire lead output (omitting quick-disconnect plug modifications such as JD or DR suffixes), utilizing a standard smooth zinc-plated steel barrel shell for anti-corrosion protection. This open layout grants field execution technicians supreme freedom during installation, enabling them to route connections cleanly through localized terminal blocks inside the conveyor side frame or crimp custom ferrules matching specific plant wire codes straight to auxiliary MDR Driver Cards (such as the Itoh Denki CB-016S7-UL or CB-018N2 modules). When integrated with closed-loop control logic, the roller drives high-efficiency Zero Pressure Accumulation (ZPA) sorting zones—running smoothly on demand and idling instantly when downstream blocks are detected to eliminate package crushing defects while cutting overarching facility power grid electrical consumption metrics by up to 70%.

DYNAMIC PROPULSION METROLOGY & PERFORMANCE DATA
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Designation: PM380LS-60-400-D-024
- Device Classification: Low-Voltage DC Motorized Driven Roller (MDR) / Power Moller
- Tube Outer Barrel Diameter: 38.0 mm (Field-optimized layout minimizing short pitch distances)
- Effective Barrel Width (Tube Length): 400 mm (Tailored for narrow-span conveyor framework profiles)
- External Tube Geometry Profile: Straight smooth cylinder layout (No grooves/Poly-V bands)
- Nominal Linear Velocity Scale: ~ 60 meters per minute (High-speed sorting tier)
- Embedded Drive Core Motor: High-Efficiency Brushless DC Motor (BLDC technology - LS Series)
- Mechanical Layout Footprint: Sealed All-in-one cylindrical barrel containing motor and planetary gear sets, removing all external chains or belts.

ELECTRICAL RATINGS & INTERCONNECT PROVISIONS
- Main Input Supply Voltage Rail: 24 V DC safe low-voltage industrial current
- Power Rail Voltage Code Designation: D-024 industrial regulation rail
- Signal Interface Hardware: Standard loose bare wire leads (Standard wire lead), optimized for custom ferrule crimping and terminal block landing.
- Automated Control Compatibility: Full logic pairing supporting automated Zero Pressure Accumulation (ZPA) zones, real-time CW/CCW rotation switching, multi-step velocity variation, and remote hardware fault diagnostics.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Core Tube Substrate Metallurgy: High-strength engineered carbon steel treated with structural anti-oxidization zinc plating.
- End Shaft Terminal Mechanical Profile: High-rigidity carbon steel shaft featuring internal spring-loaded retraction for rapid push-and-snap drop-in framework mounting.
- Planetary Gearbox Assembly: Multi-stage planetary gear configuration packed with non-bleeding lifetime synthetic thermal lubrication grease.
- Maintenance Requirements Lifecycle: 100% Zero-maintenance (Maintenance-free) throughout operational service life.
- Cleanroom Air Safety Rating: Carbon-dust-free solid-state build certified for electronics manufacturing cleanroom isolation.

ENVIRONMENTAL RATINGS & FIELD COMMISSIONING MANDATES
- Permissible Operational Ambient Temperature: Calibrated for wide-area industrial factory floor and logistics hubs thermal spans.
- Primary Industrial Deployment Profiles: High-velocity distribution sortation arrays for Logistics / E-commerce hubs, energy-saving Zero Pressure Accumulation (ZPA) staging belts, cleanroom electronics and PCB transport grids, and 90-degree right-angle transfer pop-up diversion systems.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
