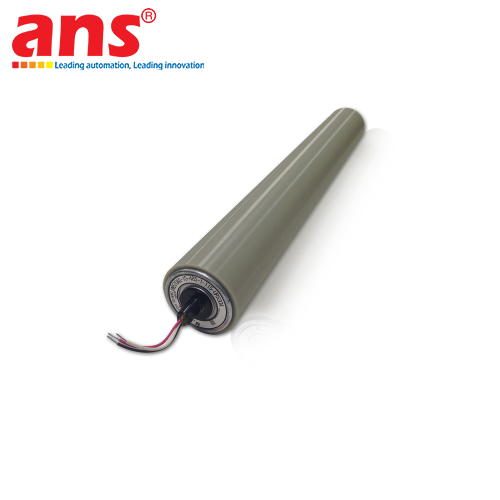

ITOH DENKI PM570AS-20-400-3-200-UR630A POLYURETHANE-LAGGED 3-PHASE AC MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & HEAVY-DUTY ADVANCED LOGISTICS SYSTEM ARCHITECTURE
The Itoh Denki PM570AS-20-400-3-200-UR630A is a premium, high-capacity industrial automated material handling component configured as a specialized internal-motor electric roller (Power Moller / Motorized Driven Roller - MDR), belonging to the robust alternating current (AC) asynchronous standard family engineered and built 100% in Japan by the global material handling pioneer Itoh Denki. This advanced device presents a turn-key "All-in-one" mechanical propulsion solution for medium-to-heavy automated transit tracks, hermetically sealing a continuous-duty 3-phase AC induction motor and a multi-stage planetary reduction gearbox straight inside a rigid structural steel barrel cylinder. The definitive engineering edge and outstanding commercial value distinguishing this specific model relies on its factory-configured "UR630A" technical option—denoting a comprehensive, high-performance engineering Polyurethane (PU/Urethane) elastomeric lagging permanently bonded to the exterior steel surface. This technical layout shatters the operational boundaries of legacy bare zinc-plated tubes, turning the roller into an uncompromised solution for steep incline or decline sloped transport paths, delicate screen and glass substrate transit cells, and heavy manufacturing shop floors enforcing strict noise-dampening acoustic mandates to defend operator health via certified Itoh Denki Vietnam engineering loops.

UR630A POLYURETHANE LAGGING TECHNOLOGY – ENHANCED FRICTION, KINETIC DAMPENING, AND TEAR IMMUNITY
The core operational advantage and primary physical asset defining this PM570AS model resides in its advanced multi-layered engineered Polyurethane surface jacket:
- Maximized Surface Friction Coefficient: Moving completely away from bare zinc-plated steel rollers that spark transient item back-slip (slippage) when package bottoms are exposed to industrial oils, dust deposits, or humidity, the Urethane (UR) profile presents an exceptionally high coefficient of mechanical friction. This locks a 100% positive traction coupling between the roller shell and the load mass, forcing packages to accelerate or decelerate instantly without sliding alignment errors.
- Impact Energy Dissipation & Acoustic Vibration Dampening: When heavy plastic storage totes or rigid wooden containers strike standard steel conveyors continuously, the blunt metallic contact discharges harsh, high-frequency auditory resonance across the facility floor. The elastic Urethane skin acts as a protective micro-dampener, absorbing structural shock loads, quelling acoustic friction screaming, and cleanly safeguarding delicate high-tech sub-assemblies (such as digital PCBs, large solar panels, or optical lenses) from micro-fractures and surface structural scratches.
- Elite Abrasive and Chemical Resistance: The factory "630A" specification sets a resilient, high-build thickness characterized by outstanding tear and peel immunity. This technical formulation is completely immune to industrial grease degradation, light chemical solvents, and high shear forces, vastly outlasting baseline natural rubber (NR) coatings which degrade, chalk, or peel under aggressive 24/7 industrial service cycles.

HEAVY-DUTY ASYNCHRONOUS "AS" 3-PHASE MOTOR POWER CELLS DISCHARGING BALANCED 20 M/MIN PROPULSION
The structural "AS" (Asynchronous Standard) motor block architecture driven by industrial three-phase 200V AC mainlines (Code 3-200) delivers continuous torque curves and massive breakout force coefficients unmatched by standard low-voltage DC alternatives. This 3-phase induction layout ensures the system runs perfectly cold under relentless 24/7 sorting parameters, resisting unexpected heat trips or speed decay under dense load streams. The system is factory-geared to track a constant linear speed of approximately 20 meters per minute (Code 20). This specific velocity parameter skips high-speed sprint runs to focus completely on maintaining structured, steady material travel. This linear uniformity assists adjacent line assembly teams, industrial barcode cameras, or dynamic quality-assurance inspection vision loops to execute high-accuracy spatial scans without positional drift.

STRUCTURAL DIMENSIONS AND ELECTRICAL PANEL INTERFACE CHARGES
The device is engineered with a standard 57.0 mm base steel tube outer core (Code 570—exclusive of the outer Polyurethane elastomer skin boundary), maximizing the physical section modulus to resist bending deflection under persistent vertical weight down-forces. The structural width spans precisely 400 mm (Code 400 / 40cm), designed for drop-in frame installation inside compact conveyor tracks matching 41cm to 45cm clear width dimensions. Controls and electrical field commissioning crews must take note that due to its industrial 3-phase AC power draw, the PM570AS-20-400-3-200-UR630A mandates wiring integration via standard magnetic contactor panels (Contactor assemblies), thermal overload relays, or independent Variable Frequency Drives (VFD inverter loops) to execute safe travel control profiles, bypassing low-voltage 24V DC cards like the CB-018 series to guarantee permanent system lifecycle durability.

DYNAMIC PROPULSION METROLOGY & GEAR PERFORMANCE DATA
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Coded: PM570AS-20-400-3-200-UR630A
- Device Structural Profile: Alternating Current Motorized Driven Roller (AC MDR) / Power Moller
- Core Product Range: AC 3-phase induction series
- Base Tube Steel Core Diameter: 57.0 mm (Exclusive of external Polyurethane elastomer lagging layer thickness)
- Effective Barrel Width (Tube Length): 400 mm (Optimized for narrow-clearance conveyor side-rail geometries)
- Nominal Linear Velocity: ~ 20 meters per minute (Velocity optimized for continuous process tracking)
- Embedded Drive Motor Core: Heavy-duty 3-Phase AC Asynchronous Induction Motor (AS Classification)
- Mechanical Enclosure Layout: Sealed All-in-one cylindrical barrel containing motor and planetary gear sets, removing all external chains or belts.

ELECTRICAL RATINGS & POWER DISTRIBUTION
- Main Input Supply Voltage Rail: 200 V AC heavy industrial grid power (3-Phase / 3-pha line inputs)
- Power Supply Frequency Spectrum: 50 / 60 Hz universal tracking compatibility
- Field Panel Interface Protocol: Mandates installation via industrial magnetic contactor blocks, thermal protection relays, or technical alternating current VFD inverters; entirely incompatible with 24V DC driver card modules.

SURFACE SPECIFICATIONS & MATERIAL METALLURGY
- Outer Barrel Shell Surface Treatment: Permanent engineering Polyurethane elastomer jacket lagging (UR630A)
- Urethane Elastomer Performance Attributes: High-friction anti-slip adhesion profile, acoustic dampening matrix blocking metal-to-metal contact resonance, dynamic impact energy absorption, oil/grease chemical immunity, and extreme tear resistance.
- Factory Coating & Geometry Coding: 630A (Establishes precise elastomer thickness, technical skin durometer, and specified end-shaft geometry limits).
- Tube Base Core Substrate: High-thickness structural carbon steel engineered to withstand persistent crushing loads without longitudinal deflection.

ENVIRONMENTAL SPECTRUM & DEPLOYMENT DIRECTIVES
- Continuous Operating Duty Classification: IEC S1 continuous duty profile (Engineered for uninterrupted round-the-clock 24/7 service at full nominal load capacity)
- Preventative Maintenance Mandate: 100% Zero-maintenance (Maintenance-free) throughout operational product lifecycle.
- Primary Industrial Deployment Profiles: Safe incline/decline sloped conveyor tracks handling fragile or high-mass materials, continuous automotive sub-assembly transport, flat technical glass panel and consumer television cleanroom manufacturing lines, and low-decibel sorting zones with strict acoustic volume constraints.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
