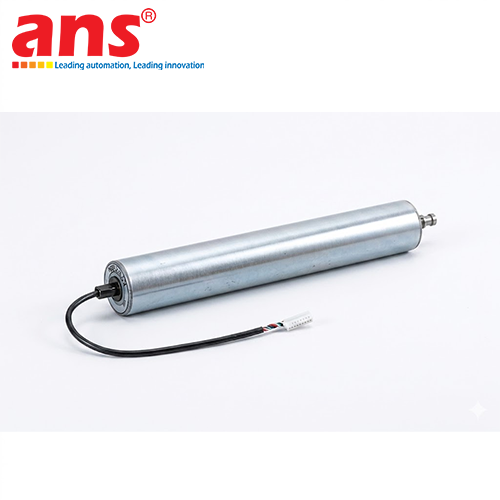

ITOH DENKI PM570FE-60-300-D-024 HIGH-SPEED HIGH-TORQUE BRUSHLESS DC MOTORIZED DRIVEN ROLLER (MDR)

DEEP PRODUCT OVERVIEW & HIGH-VELOCITY HEAVY MATERIAL HANDLING INFRASTRUCTURE
The Itoh Denki PM570FE-60-300-D-024 is a premium, high-tech industrial motorized driven roller system (Power Moller / Motorized Driven Roller - MDR) engineered specifically for sorting systems requiring a rare combination of both high speed and massive torque, developed and manufactured 100% in Japan by the global market leader Itoh Denki. This advanced device represents the definitive technological solution for narrow-span, heavy-duty "All-in-one" conveyor propulsion engineering, embedding a heavy-duty Brushless DC (BLDC) motor (designated by the "FE" high-torque prefix) and a customized planetary reduction gearbox entirely within a robust 57mm diameter structural steel tube barrel. While legacy motorized rollers forced site automation layout engineers to sacrifice velocity for breakout force parameters, the PM570FE-60-300-D-024 shatters this technical limitation by simultaneously discharging elite breakout torque coefficients and an exceptional linear velocity rating of approximately 60 meters per minute. This uncompromised operational performance delivers ultimate reliability for modern automated distribution networks supported via official Itoh Denki Vietnam logistics lines.

ELITE BRUSHLESS "FE" HIGH-TORQUE MOTOR MODIFIED FOR 60 M/MIN VELOCITY TRACKS
The core mechanical asset and primary engineering advantage driving the PM570FE-60-300-D-024 is the precision synchronization between its permanent rare-earth magnet BLDC power cell and custom-engineered gear reduction paths:
- High-Inertia Breakout Propulsion: The FE-generation stator architecture delivers immense magnetic flux densities, generating high initial starting torque to instantly transition and transport high-mass cardboard crates, raw metal blanks, industrial battery blocks, or heavy chemical paint kegs across processing floors without electrical current trips or rotor stalling defects.
- Rapid Volumetric Package Processing: Through optimized internal planetary gear dimensions, the drive block unleashes its dynamic kinetic energy into a constant 60 meter-per-minute line velocity. This rapid speed clears heavy products away from congested line junctions instantaneously, routing bulky parcels swiftly down destination chutes within high-intensity e-commerce distribution centers to maximize overarching plant throughput metrics.

HEAVY-WALLED 57MM BARREL STRUCTURAL SHIELDING & NARROW 300MM WIDTH GEOMETRY
- Deflection-Resistant 57.0 mm Outer Diameter Steel Tube (Code 570): The enlarged external barrel diameter yields an outstanding modulus of rigidity and structural stability. The heavy-walled steel composition is mathematically calculated to sustain continuous down-force stress, preserving internal shaft concentricity and thoroughly absorbing high physical impact shocks (impact shock loads) caused when heavy items drop onto the roller surface from upstream gravity tracks.
- Compact 300 mm Structural Width (Code 300): Extruded at an effective metric length of just 30cm (engineered for drop-in installation inside small conveyor clearances spanning 31 cm to 35 cm), the roller concentrates its complete thrust density over a focused contact area. This low-profile footprint is highly optimized for integration into automated case-strapping machinery infeed stations, box taping entries, or 90-degree right-angle transfer pop-up networks where vertical or horizontal clearance boundaries under the chassis are strictly limited.

TOUCH-SAFE 24V DC POWER RAILS & VERSATILE STANDARD LEAD WIRE TERMINATION
- Strict Compliance with Low-Voltage Workplace Safety: Operating entirely on a safe low-voltage 24V DC input rail (Code D-024) provides total protection against electric shock hazards for operators working in close proximity to active conveyor lines, satisfying international industrial risk mitigation protocols.
- Flexible Industrial Standard Wire Leads: This product variant features a heavy-duty loose bare wire lead output (omitting quick-disconnect plug modifications such as JD or DR suffixes). This open layout grants field execution technicians supreme freedom during installation, enabling them to route connections cleanly through localized terminal blocks inside the conveyor side frame or crimp custom ferrules matching specific plant wire codes straight to auxiliary MDR Driver Cards (such as the Itoh Denki CB-018N2 or HB-510 modules). When integrated with closed-loop control logic, the roller drives high-efficiency Zero Pressure Accumulation (ZPA) sorting zones—running smoothly on demand and idling instantly when downstream blocks are detected to eliminate package crushing defects while cutting overarching facility power grid overhead metrics by up to 70%.

DYNAMIC PROPULSION METROLOGY & PERFORMANCE DATA
- Equipment Manufacturer: Itoh Denki (Japan)
- Full System Part Number Designation: PM570FE-60-300-D-024
- Device Classification: Low-Voltage DC Motorized Driven Roller (MDR) / Power Moller
- Core Product Range: 24V DC Brushless High Torque High Speed Series
- Outer Barrel Shell Diameter (Tube Diameter): 57.0 mm (Heavy-walled impact-resistant steel cylinder)
- Effective Barrel Width (Tube Length): 300 mm (Standard metric length optimized for narrow conveyor channels)
- External Tube Geometry Profile: Straight smooth cylinder layout (No grooves/Poly-V bands)
- Nominal Linear Velocity Scale: ~ 60 meters per minute (High-speed sorting tier)
- Embedded Drive Core Motor: High-Torque Brushless DC Motor (BLDC technology - FE Series)
- Mechanical Layout Footprint: Sealed All-in-one cylindrical barrel containing motor and planetary gear sets, removing all external chains or belts.

ELECTRICAL RATINGS & INTERCONNECT PROVISIONS
- Main Input Supply Voltage Rail: 24 V DC safe low-voltage industrial current
- Power Rail Voltage Code Designation: D-024 industrial regulation rail
- Signal Interface Hardware: Standard bare wire leads (Standard wire lead), optimized for custom ferrule crimping and terminal block landing.
- Automated Control Compatibility: Full logic pairing supporting automated Zero Pressure Accumulation (ZPA) zones, programmable Soft Start / Soft Stop velocity curves, real-time CW/CCW rotation switching, and remote hardware fault diagnostics.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Core Tube Substrate Metallurgy: High-thickness engineered structural carbon steel treated with anti-oxidization industrial zinc plating compliant with Japanese manufacturing standards.
- End Shaft Terminal Mechanical Profile: High-rigidity carbon steel shaft featuring internal spring-loaded retraction for rapid push-and-snap drop-in framework mounting.
- Planetary Gearbox Assembly: Multi-stage planetary gear configuration milled from structural alloy steel, packed with non-bleeding lifetime synthetic thermal grease.
- Maintenance Requirements Lifecycle: 100% Zero-maintenance (Maintenance-free) throughout operational service life.

ENVIRONMENTAL RATINGS & FIELD COMMISSIONING MANDATES
- Cleanroom Air Safety Rating: Carbon-dust-free solid-state build certified for electronics manufacturing cleanroom isolation, running silently with minimal noise generation.
- Primary Industrial Deployment Profiles: High-speed heavy-package sortation networks (Heavy Duty Sorting), automated cardboard box strapping machine infeed channels, and high-frequency 90-degree right-angle transfer pop-up diversion systems.
- Mechanical Production Origin: 100% Engineered and Manufactured in Japan (Japan Origin).
